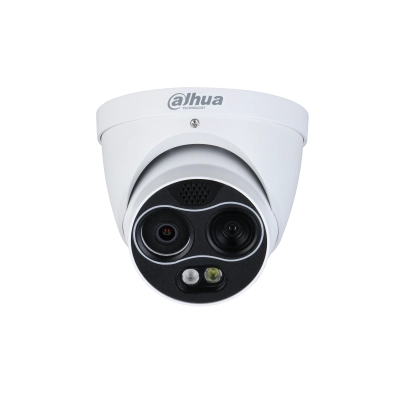

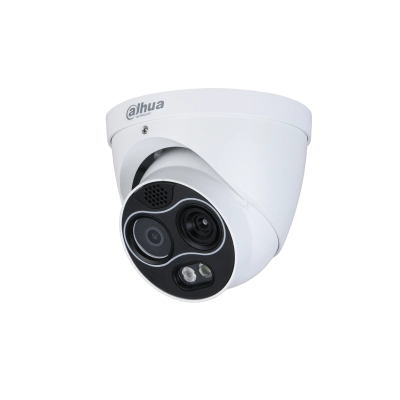

Thermal Network Mini Hybrid Eyeball Camera-TPC-DF1241-S2


Minimum Order Quantity: 1 PCS


Field of View

2 mm: 87.8° × 63.8°,3.5 mm: 50.6° × 37.8°,7 mm: 24° × 18°

Close Focus Distance

2 mm: 0.3 m,3.5 mm: 0.5 m,7 mm: 1 m

Detection Distance

2 mm: Vehicle 256 m, Human 83 m,3.5 mm: Vehicle 449 m, Human 146 m,7 mm: Vehicle 897 m, Human 292 m

Aperture

F1.0

Digital Zoom

16 levels

Color Palettes

18

Detector Type

Vanadium oxide uncooled focal plane

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8-14 μm

Thermal Sensitivity (NETD)

< 40 mK


T

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

verified image
Verified Supplier

Assured Image

The Thermal Network Mini Hybrid Eyeball Camera-TPC-DF1241-S2 is a versatile surveillance solution that seamlessly combines thermal and visible light imaging capabilities. Featuring a compact and discreet design, this hybrid camera is engineered to provide reliable detection and monitoring in challenging environments. The thermal sensor with 256 × 192 resolution and 8-14 μm spectral range delivers accurate heat detection, while the 2336 × 1752 pixel CMOS sensor captures high-quality visual images. With a motorized varifocal lens, IP67 rating, and intelligent video analytics, the TPC-DF1241-S2 is a powerful tool for perimeter security, industrial monitoring, and search and rescue operations. Its versatility and robust performance make it an ideal choice for enhancing security and surveillance in diverse applications.
