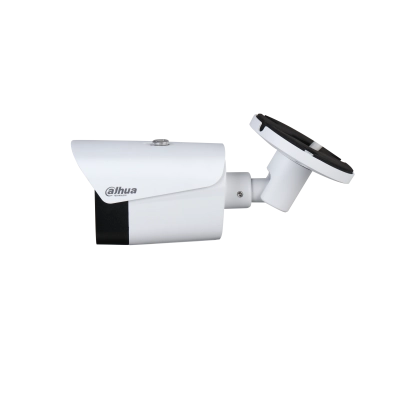

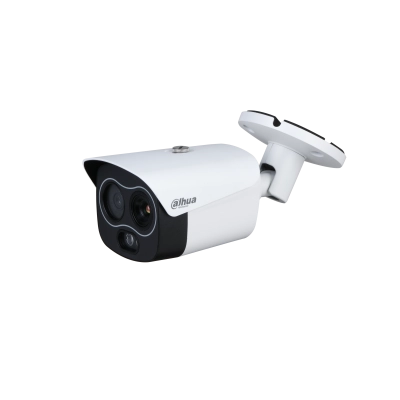

Thermal Network Mini Hybrid Bullet Camera-TPC-BF1241-S2

Detector Type

Vanadium oxide uncooled focal plane detector

Max. Resolution

256 (H) × 192 (V) pixels

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 40 mK @ f/1.0, 25 Hz, 300 K

Digital Detail Enhancement

Yes

Digital Zoom

16 levels

Color Palettes

18 (including white hot, black hot, fusion, etc.)

Image Sensor

1/2.7'' CMOS, 4 MP

IR Illumination Distance

Up to 30 m (98.43 ft)

Video Compression

H.265, H.264, MJEPG

Resolution (Visual)

2336 × 1752 (default), 1080p, 720p, D1

Frame Rate

Up to 30 fps

Network Interface

10/100 Base-T Ethernet, Wi-Fi optional

Power Supply

12 VDC ± 20%, PoE

Operating Temperature

-30 °C to +50 °C (-22 °F to +122 °F)

Protection

IP67

Dimensions

205.5 mm × 90.4 mm × 90.1 mm (8.09'' × 3.56'' × 3.55'')

Weight

0.9 kg (1.98 lb)
