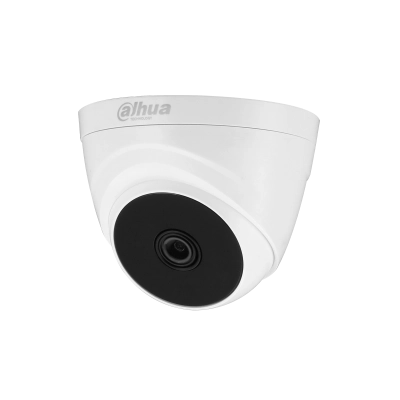

2MP Lite Full-Color Fixed-focal Eyeball Network Camera-IPC-HDW1239T1P-LED-S5

Image Sensor

1/2.7” 2 Megapixel progressive CMOS

Effective Pixels

1920 (H) × 1080 (V)

RAM/ROM

64 MB / 16 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3s–1/100000s

Min. Illumination

0.005 Lux @ F1.6

IR LED Distance

2.8 mm: 10 m (32.8 ft); 3.6 mm: 15 m (49.2 ft)

IR LEDs

1

Lens Type

Fixed-focal

Lens Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H 110°, V 59°, D 132°; 3.6 mm: H 91°, V 48°, D 109°

DORI Distance

2.8 mm: Detect 37.3 m, Observe 14.9 m, Recognize 7.5 m, Identify 3.7 m

Video Compression

H.265; H.264; MJPEG

Smart Codec

Yes

Video Resolution

1080P, 1.3MP, 720p, D1, VGA, CIF

Bit Rate Control

CBR/VBR

Day/Night

Color/B&W

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<4.8 W

Ingress Protection

IP67

Operating Temperature

-40°C to +60°C (-40°F to +140°F)

Dimensions

85.5 mm × Ø109 mm (3.4" × Ø4.3")

Weight

0.24 kg (0.5 lb)
