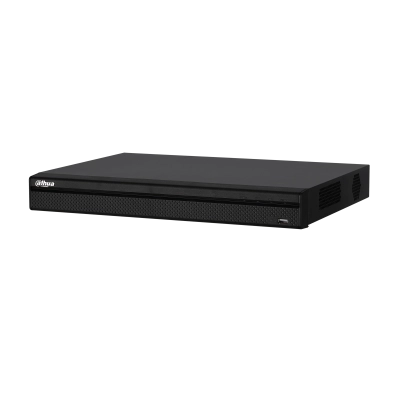

32 -Channel Penta-brid 720P Digital Video Recorder-XVR4232AN

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Analog Camera Input

16/32 Channel, BNC

HDCVI Camera Input

1080P@25/30fps, 720P@25/30fps

AHD Camera Input

1080P@25/30, 720P@25/30fps

TVI Camera Input

1080P@25/30, 720P@25/30fps

CVBS Camera Input

PAL/NTSC

IP Camera Input

16+2/16 Channel, each up to 5MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Compression

H.264

Resolution

1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main stream: 1080N(112fps)/720P(115fps)/960H/D1/HD1/BCIF/CIF/QCIF (125/30fps) <br> Sub stream: CIF/QCIF(17fps)

Bit Rate

1Kbps ~ 6144Kbps per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD, Alarm, Stop

Record Interval

1 ~ 60 min, Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Display Interface

16CH: 1 HDMI, 1 VGA <br> 32CH: 1 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

16CH: 1/4/8/9/16 (IP mode enabled: 1/4/8/9/16/25) <br> 32CH: 1/4/8/9/16/25/36

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network Interface

16CH: 1 RJ-45 Port (100M) <br> 32CH: 1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant
