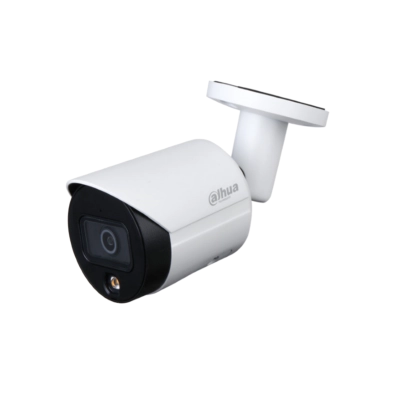

2MP Lite Full-color Fixed-focal Bullet Network Camera-IPC-HFW2239S-SA-LED-S2

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Color: 0.0017 lux@F1.0 (30 IRE)B/W: 0.0002 lux@F1.0 (30 IRE)

Illumination Distance

30 m (98.4 ft) (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360°

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 107°; V: 55°; D: 127°3.6 mm: H: 91°; V: 47°; D: 109°

DORI Distance

Lens:2.8 mm: W 46.5 m, T 280 m3.6 mm: W 53.7 m, T 340 m

Video Frame Rate

Main stream: 1920 × 1080 (1 fps–25/30 fps)

Audio

Built-in MIC, Audio Compression: G.711A; G.711Mu; G.726

Network

RJ-45 (10/100 Base-T), Protocol: TCP, UDP, HTTP, RTSP, etc.

Storage

FTP, Micro SD card (up to 256 GB), NAS, SFTP

Cyber Security

Video encryption, firmware encryption, HTTPS, account lockout, etc.

Mobile Support

iOS, Android

Certifications

CE-LVD, CE-EMC, FCC
