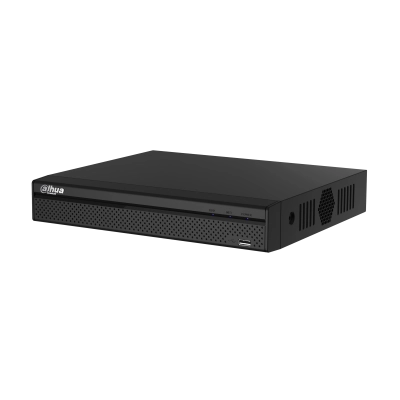

XVR4116HS-X - 16 Channel Penta-brid 720P Compact 1U Digital Video Recorder

Main Processor

Embedded Processor

Operating System

Embedded Linux

Analog Camera Input

16 Channel, BNC

HDCVI Camera Input

1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera Input

1080P@25/30fps, 720P@25/30fps

TVI Camera Input

1080P@25/30fps, 720P@25/30fps

CVBS Camera Input

PAL/NTSC

IP Camera Input

16+2 channels, up to 6MP per channel

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Video Compression

H.265/H.264

Resolution

1080N, 720P, 960H, D1, CIF

Record Rate

Main Stream: 1080N/720P (125/30fps); Sub stream: CIF (17fps)

Video Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule, MD (Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display Interface

1 HDMI, 1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Multi-screen Display

1/4/8/9/16 (depends on IP extension mode)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant
