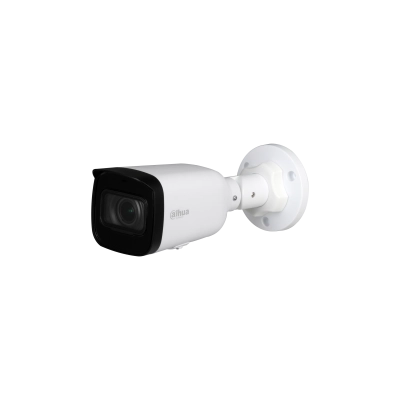

2MP Entry IR Vari-focal Bullet Network Camera -IPC-HFW1230T1P-ZS-S4

Image Sensor

1/2.8” 2 Megapixel CMOS

Effective Pixels

1920 (H) x 1080 (V)

RAM/ROM

128MB / 16MB

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

Color: 0.008 Lux@F1.7B/W: 0.0008 Lux@F1.7

S/N Ratio

> 56dB

IR Distance

50 m (164.04 ft)

IR LEDs

2

Lens Type

Motorized vari-focal

Focal Length

2.8 mm – 12 mm

Max. Aperture

F1.7

Angle of View

Horizontal: 101°–33.5°Vertical: 52.5°–19°Diagonal: 125°–38.5°

Video Compression

H.265; H.264; MJPEG

Streaming Capability

2 streams

Resolution

1080p, 1.3M, 720p, D1, VGA, CIF

Frame Rate

Main Stream: 1920 × 1080 @ 1–25/30 fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
