Category: Consumer Electronics
Subcategory: CCTV, Surveillance Systems and Parts
Brand: Dahua HDCVI Camera
Sold by: Tejas Enterprises Pvt. Ltd.
Minimum Order Quantity: 1 PCS
Image Sensor
1/2.7 inch CMOS
Max. Resolution
1920(H)×1080(V) (2MP)
Pixel
2MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25s–1/100000s<br>NTSC: 1/30s–1/100000s
S/N Ratio
>65dB
Min. Illumination
0.02Lux/F1.9, 30IRE<br>0Lux IR on
Illumination Distance
30 m (98.4 ft)
Illuminator Control
Auto; manual
Illuminator Number
2
Pan/Tilt/Rotation Range
Pan: 0°–360°<br>Tilt: 0°–90°<br>Rotation: 0°–360°
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.9
Field of View
2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical)<br>3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical)
Iris Type
Fixed iris
Close Focus Distance
2.8 mm: 0.5 m (1.7 ft)<br>3.6 mm: 0.8 m (2.6 ft)
DORI Distance
Lens;2.8 mm,3.6 mm
Resolution
1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)
Day/Night
Auto switch by ICR
BLC
BLC
WDR
DWDR
White Balance
Auto; manual
Seller Information
Tejas Enterprises Pvt. Ltd.
Importer, Exporter, Wholesaler/Dealer/Distributor

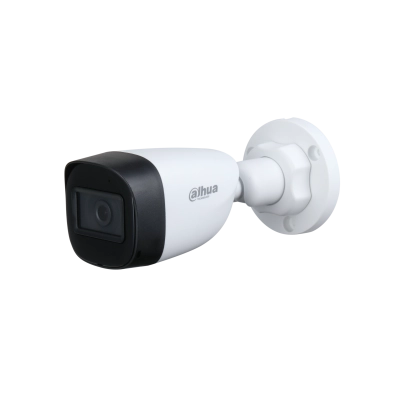

The HAC-HFW1200C(-A) is a robust 2MP HDCVI IR bullet camera designed for high-definition surveillance applications. It features a 1/2.7-inch CMOS image sensor, delivering clear and detailed video at a maximum resolution of 1920 x 1080 pixels. With progressive scanning and adaptable electronic shutter speeds (PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s), it ensures smooth video capture in varying lighting conditions. The camera offers a minimum illumination of 0.02 lux at F1.9 (IR off), with IR illuminators enabling night vision up to 30 meters. It supports auto/manual control for IR illumination and provides flexible lens options (2.8 mm, 3.6 mm) for different viewing angles. Ideal for both indoor and outdoor use, it is housed in a durable IP67-rated casing, making it resistant to dust and water ingress
