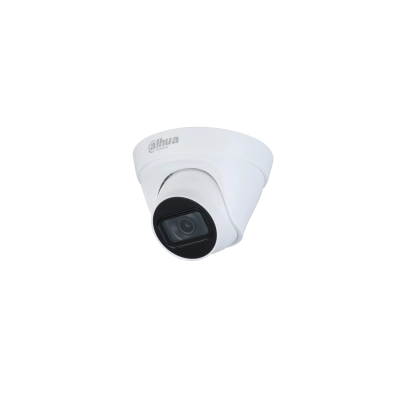

4MP Entry IR Fixed-focal Eyeball Network Camera-IPC-HDW1431T1P-S4

Max. Aperture

F2.0

Image Sensor

1/3” 4Megapixel progressive CMOS

Effective Pixels

2688 (H) × 1520 (V)

RAM/ROM

128MB/128MB

Minimum Illumination

0.03 Lux @ F2.0

S/N Ratio

More than 50dB

IR Distance

Up to 30m (98.4ft)

IR LEDs

1

Lens Type

Fixed

Focal Length

2.8 mm / 3.6 mm

Angle of View

2.8 mm: H 93°, V 53°, D 111°<br>3.6 mm: H 81°, V 44°, D 95°

Focus Control

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.6 ft)<br>3.6 mm: 1.4 m (4.6 ft)

DORI Distance

2.8 mm: Detect 50.0 m, Observe 22.4 m, Recognize 11.2 m, Identify 15.1 m<br>3.6 mm: Detect 80.0 m, Observe 32.0 m, Recognize 16.0 m, Identify 8.0 m

Pan/Tilt Range

Pan: 0° ~ 355°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°

Video Compression

H.265; H.264; H.264B; MJPEG

Streaming Capability

2 Streams

Resolution

Various including 2688 × 1520, 2560 × 1440, 1080p, etc.

Frame Rate

Main Stream: 2688 × 1520 (1-20 fps), 2560 × 1440 (1-25/30 fps)<br>Sub Stream: 704 × 576 (1-20/25 fps), 704 × 480 (1-20/30 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps – 6144 Kbps<br>H.265: 12 Kbps – 6144 Kbps

Day/Night

Auto (IR-Cut) / Color / B/W

BLC Mode

BLC / HLC
