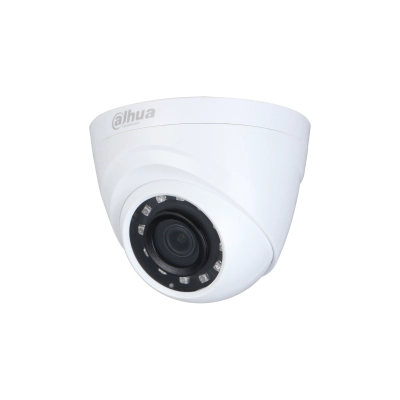

HAC-HDW1200R 2MP - HDCVI IR Eyeball Camera

Available

Category: Consumer Electronics

Subcategory: CCTV, Surveillance Systems and Parts

Brand: Dahua HDCVI Camera

Sold by: Tejas Enterprises Pvt. Ltd.

Minimum Order Quantity: 1 PCS

Image Sensor

1/2.7 inch CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s

Minimum Illumination

0.02Lux/F1.9, 30IRE, 0Lux IR on

IR LED Number

Pan/Tilt/Rotation Range

Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

Lens Type

Fixed-focal

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.9

Field of View

2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical)

Video Frame Rate

CVI/TVI/AHD: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps

Resolution

1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

CE, FCC, UL

Video Output

CVI/TVI/AHD/CVBS by one BNC port

Power Supply

12V ±30% DC

Power Consumption

Max 3.1W (12V DC, IR on)

Operating Temperature

-40°C to +60°C (-40°F to 140°F)

Protection Grade

IP50

Casing

Plastic

Dimensions

?85.4 mm × 70.2 mm (?3.36" × 2.76")

Net Weight

0.13 Kg (0.29 lb)

Gross Weight

0.19 Kg (0.42 lb)

Seller Information
Tejas Enterprises Pvt. Ltd.

Importer, Exporter, Wholesaler/Dealer/Distributor

Verified Supplier

The HAC-HDW1200R is a high-definition 2MP HDCVI IR eyeball camera designed for robust surveillance needs. It features a 1/2.7 inch CMOS image sensor with a maximum resolution of 1920(H)×1080(V), delivering clear and detailed video even in challenging lighting conditions. With a progressive scanning system and electronic shutter speeds ranging from 1/25s to 1/100000s (PAL) and 1/30s to 1/100000s (NTSC), it ensures smooth video capture. The camera offers a minimum illumination of 0.02Lux/F1.9 and supports Smart IR technology for effective night vision up to 30 meters. It is equipped with a 3.6mm fixed lens (2.8mm optional), providing a wide field of view and flexible installation options. Ideal for both indoor and outdoor environments, the HAC-HDW1200R features IP67 weather resistance and IK10 vandal resistance, ensuring durability in various conditions.
