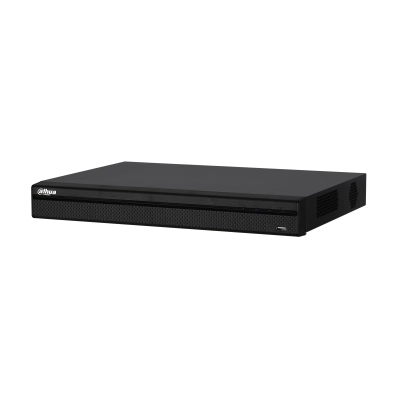

XVR4216/32AN-X 16/32 Channel Penta-brid 720P Digital Video Recorder

Main Processor

Embedded Processor

Operating System

Embedded Linux

Analog Camera Inputs

16/32 Channel, BNC

Camera Compatibility

HDCVI, AHD, TVI, CVBS

IP Camera Inputs

16+2 channels, up to 6MP per channel

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Compression

H.265/H.264

Resolution

1080N, 720P, 960H, D1, CIF

Record Rate

1st channel: 1080N/720P (125/30fps); Others: 1080N/720P (115fps); 960H/D1/CIF (1~25/30fps)

Sub Stream

CIF (1~7fps)

Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule, MD, Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min); Pre-record: 1 ~ 30 sec; Post-record: 10 ~ 300 sec

Audio Compression

G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display Interface

16CH: 1 HDMI, 1 VGA; 32CH: 1 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720

Multi-screen Display

16CH: 1/4/8/9/16; 32CH: 1/4/8/9/16/25/36

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network Interface

16CH: 1 RJ-45 Port (100M); 32CH: 1 RJ-45 Port (1000M)

Network Functions

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search

Max. User Access

128 users

Smart Phone Access

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant
