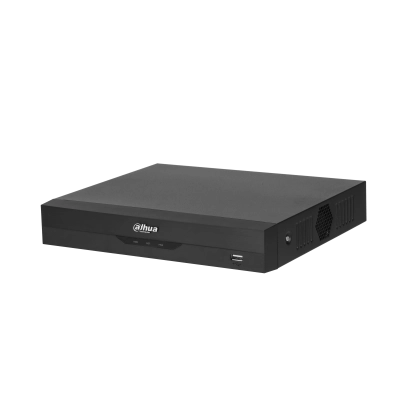

XVR4116HS-I 16 Channels Penta-brid 720P Compact 1U 1HDD WizSense Digital Video Recorder

Main Processor

Embedded Processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

SMD Plus

Secondary filtering for human and motor vehicle, reducing false alarms

Analog Camera Input

16 channels, BNC (HDCVI, AHD, TVI, CVBS)

IP Camera Input

Up to 18 channels (2 default + 16 via analog conversion)

Encoding Capacity

Main Stream: 1080N/720p, 960H/D1/CIF; Sub Stream: CIF

Dual-stream

Yes

Video Bit Rate

32 kbps – 6144 kbps per channel

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps per channel

Video Output

1 HDMI, 1 VGA (1920×1080, 1280×1024, 1280×720)

Multi-screen Display

1/4/8/9/16

Third-party Access

ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Compression Standards

AI Coding, H.265+, H.265, H.264+, H.264

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Access

iOS, Android

Interoperability

ONVIF 21.06, CGI Conformant

Recording Modes

General, motion detection, alarm

Playback Modes

Instant, general, event, tag playback

Alarm Types

Motion detection, video loss, tampering, anomaly alarms

Ports

Audio In: 1 RCA; Audio Out: 1 RCA; Two-way Talk: Yes; HDD: 1 SATA port

USB Ports

2 USB 2.0 ports

Network Port

1 (10/100 Mbps Ethernet)

Power Supply

12 VDC, 2 A

Power Consumption

<10 W

Net Weight

1.042 kg (3.00 lb)

Gross Weight

1.48 kg (3.26 lb)

Product Dimensions

260 mm × 237.9 mm × 47.6 mm (10.24" × 9.37" × 1.87")

Packaging Dimensions

333 mm × 315 mm × 89 mm (13.11" × 12.40" × 3.50")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

0%–90% (RH)

Installation

Desktop

Certifications

FCC Part 15 Subpart B, CE-LVD, CE-EMC
