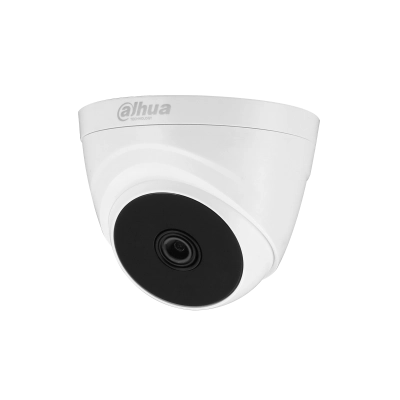

HAC-T1A21- 2MP HDCVI IR Eyeball Camera

Illuminator Control

Auto/Manual

Illuminator Number

1 (IR light)

Image Sensor

2MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s<br>NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.04 lux@F2.0 (Color, 30 IRE)<br>0.004 lux@F2.0 (B/W, 30 IRE)<br>0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

20 m (65.62 ft)

Pan/Tilt/Rotation Range

Pan: 0°–360°<br>Tilt: 0°–78°<br>Rotation: 0°–360°

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F2.0

Field of View

See detailed angles under each focal length

Iris Control

Fixed

Close Focus Distance

See detailed distances under each focal length

Video Frame Rate

CVI, TVI, AHD, CVBS:<br>See detailed frame rates under each standard

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)

Day/Night Mode

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

2D NR

Smart Illumination

Yes

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

CE, FCC

Video Output

CVI/TVI/AHD/CVBS by one BNC port

Power Supply

12 VDC ± 30%

Power Consumption

Max. 2.3 W (12 VDC, IR on)

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Casing

Plastic

Product Dimensions

Φ85.4 mm × 68.8 mm (Φ3.36" × 2.71")

Packaging Dimensions

109 mm × 109 mm × 85 mm (4.29" × 4.29" × 3.35")

Net Weight

0.09 kg (0.20 lb)

Gross Weight

0.13 kg (0.29 lb)

Installation

Wall mount; ceiling mount; horizontal pole mount
