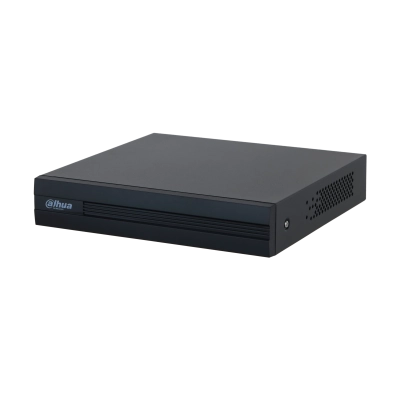

32 -Channel Penta-brid 720P Digital Video Recorder-XVR4232AN-S2

Main Processor

Embedded processor

Operating System

Embedded Linux

SMD Plus Performance

4 channels

AI Search

Human, Vehicle classification

Analog Camera Input

4 channels, BNC

HDCVI Camera Input

1080p @ 25/30 fps, 720p @ 25/30/50/60 fps

AHD Camera Input

1080p @ 25/30 fps, 720p @ 25/30 fps

TVI Camera Input

1080p @ 25/30 fps, 720p @ 25/30 fps

CVBS Camera Input

PAL/NTSC

IP Camera Input

4+1 channels, up to 2MP per channel

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Compression

AI Coding/H.265+/H.265/H.264+/H.264

Record Rate

1~25/30 fps for all channels

Record Mode

Manual, Schedule, MD, Alarm, Stop

Audio Compression

G.711A, G.711U, PCM

Display Interface

HDMI, VGA

Network Interface

RJ-45 Port (100 Mbps)

Network Protocols

HTTP, HTTPS, TCP/IP, IPv4/IPv6, 3G/4G, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P

Max. User Access

128 users

Smart Phone Support

iPhone, iPad, Android

Video Detection

Motion Detection, MD Zones (396), Video Loss, Tampering

Playback Mode

Time/Date, Alarm, MD, Exact Search

Backup Mode

USB Device/Network

Storage

1 SATA port, up to 6 TB capacity

Power Supply

DC 12V/1.5A

Power Consumption

< 7 W (without HDD)

Dimensions

198 mm x 202.9 mm x 41.5 mm

Net Weight

0.57 kg (without HDD)

Operating Temperature

-10 °C to +45 °C

Storage Temperature

-20 °C to +70 °C

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Canon, Panasonic, Pelco, Sony, Vivotek

Certifications

FCC, CE-LVD, CE-EMC
