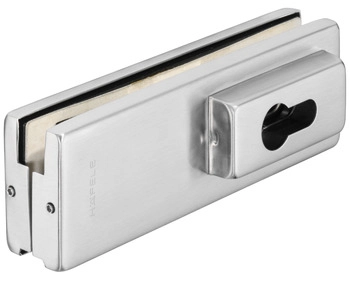

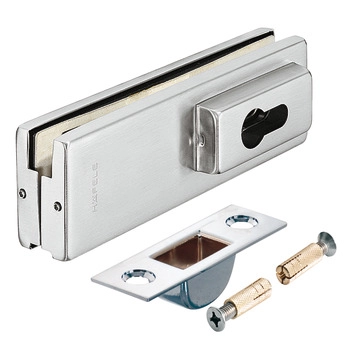

Patch Fitting, Corner Patch Lock with Profile Cylinder Aperture, Startec

For euro profile cylinder (30/30 mm)
Deadbolt: 1 turn
Striking plate length 90 mm
Striking plate width 23 mm
Striking plate aperture 42 mm L x 11.5 mm W
Strike plate hole centres 70 mm
Bolt 36 x 16 mm


Material

Stainless steel

Colour/finish

matt

Area of application

Glass door patch fittings

For glass thickness

10?–?12 mm

Deadbolt throw

1 turn

Installation

Concealed clamp fixing with hexagon socket head screws
