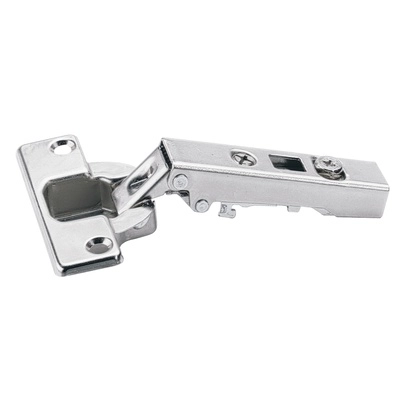

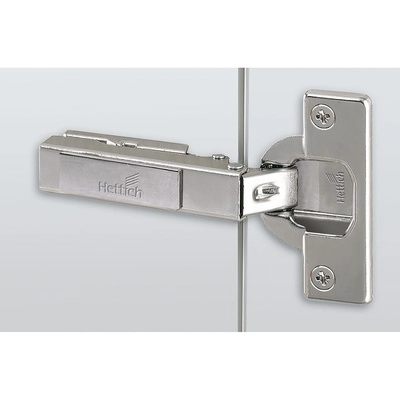

Intermat hinge (Intermat 9943), overlay, Opening angle 110° vistaartrade.com

Design	90° construction
Door type	Standard door / wooden door Wood framed door (profile width from 50 mm)
User friendly features	Without integrated Silent System
Door mounting option	overlay
Opening angle	110 °
Min. door thickness	15 mm
Max. door thickness	25 mm
Cup version	TH 43
Base	12.5 mm
Cup diameter	35 mm
Type of installation	for pressing in
Cup depth	11.6 mm
Hinge surface finish	Steel nickel plated
Drilling pattern	TH 52 x 5,5 mm
Diameter of mounting hole	10 mm ø
Integrated overlay adjustment	+2 mm / -2 mm
Integrated depth adjustment	+2.5 mm / -1.5 mm
Mounting hole	ø 10 x 11
Stay closed function	Yes
EAN	4023149067501
Order no.	48053
PU	50

Intermat hinge (Intermat 9943), overlay, Opening angle 110°
