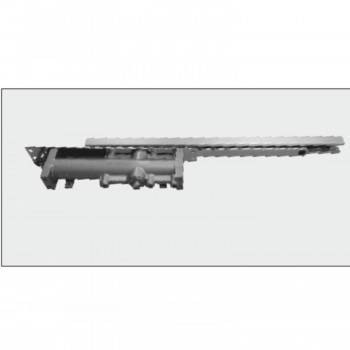

HETTICH Concealed Door Closer with hold open Slide rail - HCS 385

Features

• Rack And Pinion (Symmetric) Mechanism Door Closer
• Weight of door: 40-80 Kg
• Width of door: 850-1100 mm
• Min. Door Thickness: 45 mm
• Tested & Certified 200,000 cycles in-house lab

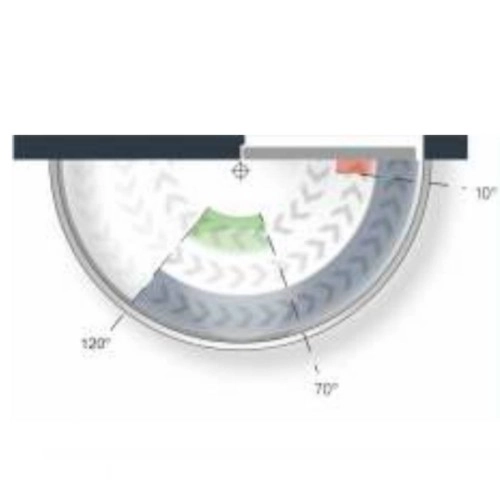

• Closing speed: Continuously adjustable closing speed from approx. 120° to 0°
• Latching speed: Adjustable, works between 10 to 0°
• Back Check: Adjustable, works between 70° to 120°
• Door closer power continuous adjustment with an allen key from top
• Hold Open power can be adjusted according to door size and weight
• Door Opening Angle 120°
• Inbuilt Hold Open function in slide rail
• Door Material: Steel, Wooden, Profile Framed
• Finish : Silver
