Microscopic Camera Digital Hdmi/Wifi/Gige 16.0mp with adapter bwhc-4k8mpb bestscope

Overview

Quick Details

Model:BWHC-4K8MPA

Sensor & Size(mm):1/1.8"

Pixel(μm):2.0x2.0

G Sensitivity Dark Signal:505mv with 1/30s



FPS/Resolution:60@3840*2160(HDMI)

Binning:1x1

Exposure:0.04ms~1000ms

USB Port:USB3.0



Image Capture:8MP

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 weeks after receiving payment

Introduction

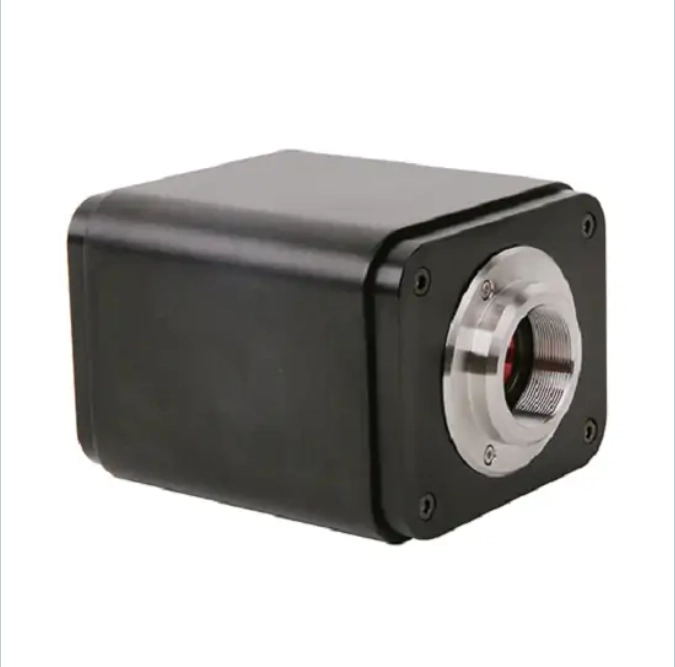

BWHC-4K8MPA 4K UHD HDMI/GigE/WiFi Multi-outputs Digital Camera(With Sony IMX334(C) Sensor) is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.

BWHC-4K series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The cameras use a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (GE) for image-capture and video-recording.

Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.

The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

The BWHC-4K series cameras are intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.

Features

The basic characteristics are listed as below:

1.Sony Exmor CMOS sensor;

2.4K HDMI/GE/WLAN multiple video outputs;

3.4K/1080P auto switching according to the display resolution;

4.SD card/USB flash disk for the captured image and video storage;

5.Embedded XCAMView for the control of the camera with mouse, no shaking;

6.With strong ISP and other related processing functions;

1. ImageView software for PC;
2. iOS/Android applications for smart phones or tablets.

Application

1.Scientific research, digital teaching (teaching, demonstration and academic discussing);

2.Digital laboratory, medical research;

3.Machine vision (PCB detection, IC quality control);

4.Medical treatment (pathological observation);

5.Food (microbial colony observation and counting);

6.Aviation and military.

Specification

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
BWHC-4K8MPA	4K/Sony IMX334(C) 1/1.8″(7.68×4.32)	2.0×2.0	505mv with 1/30s 0.13mv with 1/30s	60@3840*2160(HDMI) 60@1920*1080(HDMI) 30@3840*2160(WiFi, GE)	1×1	0.04ms~1000ms
BWHC-4K16MPA	Sony IMX183(C) 1/1.06″(13.06×7.27)	2.4×2.4	1847mv with 1/30s 0.84mv with 1/30s	30@3840*2160(HDMI) 30@1920*1080(HDMI) 30@3840*2160(WiFi,GE)	1×1	0.04ms~2000ms

C: Color; M: Monochrome;



Interface & Button Functions
	USB Mouse	Connect USB mouse for easy operation of the embedded XCAMView software
	USB3.0	Connecting USB flash disk for image or video storage; Connecting 5G WLAN adapter as WLAN camera in AP or STA mode;
	HDMI	Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution
	GE	Gigabit Ethernet port to connect to the PC for the video streaming
	SD	Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage
	DC12V	Power adapter connection (12V)
	ON/OFF	Power switch
	LED	Camera status indicator
Other Specification for HDMI Output
UI Operation	With USB Mouse
Image Capture	8M (3840*2160) JPEG Image in SD Card or USB Flash Disk(BWHC-4K8MPA) 16M (5440*3060) JPEG Image in SD Card or USB Flash Disk(BWHC-4K16MPA)
Video Record	Video Format: 8M(3840*2160) H264 Encoded MP4 Format (BWHC-4K8MPA, BWHC-4K16MPA) Video Recording Frame Rate: 50~60FPS(BWHC-4K8MPA),26~30FPS(BWHC-4K16MPA) (related with the SD card speed class and video resolution)
Camera Control Panel	Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar	Including Zoom, Mirror, Comparison (Video~image, image~image), Freeze, Cross, Browser Function
Other Specification for GE Output
White Balance	Auto/Manual/ROI White Balance
Color Technique	Ultra-FineTM Color Engine
Capture/Control API	Standard GE API for Windows/Linux/Mac
Recording System	Still Picture or Video
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	Ethernet Port: RJ45 Ethernet Port
	Display:19” or Larger
	CD-ROM
Operating Environment
Operating Temperature (in Centigrade)	-10°~ 50°
Storage Temperature (in Centigrade)	-20°~ 60°
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/1A Adapter
