Microscope Inverted ckx41-a71 php trinocular tube u- ctr30-2b standard set olympus

Category: Scientific, Measuring, Laboratory Instruments & Supplies

Subcategory: Metallurgical & Lab Microscopes

Brand: Not Mentioned

Sold by: BTC Private Limited

Minimum Order Quantity: 1 PCS

Description

Olympus CKX41 Inverted Phase Contrast Microscope

The Olympus CKX41 Inverted Phase Contrast Microscope offers you advanced optics with outstanding clarity and comfort. This compound microscope with an ...See more

B

Seller Information
BTC Private Limited

Wholesaler/Dealer/Distributor

Assured Image

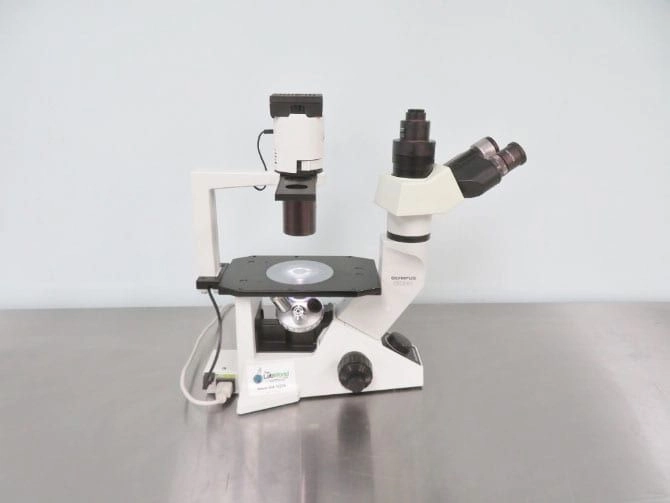

Olympus CKX41 Inverted Phase Contrast Microscope

The Olympus CKX41 Inverted Phase Contrast Microscope offers you advanced optics with outstanding clarity and comfort. This compound microscope with an optional trinocular head can also be upgraded to fluorescence making it suitable for imaging GFP as well as other fluorescence applications. This phase contrast microscope has a quick action, tilting head that lets users easily perform visual checks, and boosts productivity with pre-centered phase contrast.The Olympus CKX41 Inverted Phase Contrast Microscope has a fixed level stage, vertical nose piece movement, with course refinement at 36.8mm per rotation, and fine at 0.2mm. This inverted phase-contrast microscope comes with a 30w halogen lamp, with built-in frosted and heat-absorbing filters to give better color integrity, excellent for microphotography.

Olympus CKX41 Inverted Phase Contrast Microscope Specifications:

Optical System UIS2/UIS (Universal Infinity System) optical system
Illumination Built-in transmitted Koehler illumination High-intensity halogen bulb 6V30WHAL (PHILIPS 5761) (Average lifetime: Approx. 100 hr. when used as directed) Output rating: 6 V 30 VA (DC) Input rating: 100-120/220-240 V, 0.85/0.45 A, 50/60 Hz
Focusing Vertical movement of revolving nosepiece (stage height fixed) Coarse and fine adjustment knobs (provided with rotation tension adjustment mechanism) Stroke per rotation (from focal point on stage surface): 7 mm upward and 2 mm downward
Environment Usage

 Indoor use.

Altitude: Max. 2000 m

Ambient temperature: 5° to 40°C (41° to 104°0)

Maximum relative humidity: 80% for temperatures up to 31°C (88°0), decreasing linearly through 70% at 34°C (93°0), 60% at 37°C (99°0), to 50% relative humidity at 40°C (104°0).
Dimensions 21″ x 9″ x 20″
Weight 20 lbs
Power 115V 50/60Hz
