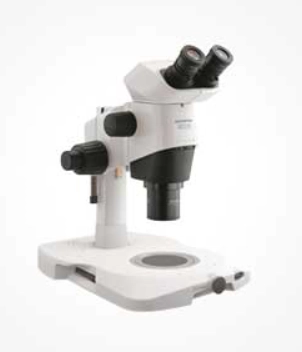

Microscope Stereo szx10 Trinocular 1x objective szx2-illtq led base

Category: Scientific, Measuring, Laboratory Instruments & Supplies

Subcategory: Metallurgical & Lab Microscopes

Brand: Not Mentioned

Sold by: BTC Private Limited

Minimum Order Quantity: 1 PCS

Description

Control Knobs Capable of Quick Inspection

Superior Performance from a Choice of 8 Interchangeable Objectives

Stands and Illumination Units

B

Seller Information
BTC Private Limited

Wholesaler/Dealer/Distributor

Assured Image

Control Knobs Capable of Quick Inspection

SXZ10 microscope zoom control Knob with click-stop
Zoom knob with click-stop		 With a wide zoom range of 0.63x to 6.3x, users can observe samples at a range of magnifications without having to switch objective lenses. A specially designed dual objective holder with axial detent further extends the range of possible magnifications. The axial light path setting ensures that measurements taken with the camera are reliable and precise in all directions making results independent from the orientation of the sample under the microscope.
Since many imaging and measuring tasks require the use of the same zoom magnification setting to ensure consistent and comparable results, the integrated 11-position click-stop makes it easy to record and reproduce zoom settings.

Superior Performance from a Choice of 8 Interchangeable Objectives

SZX10 Lineup of Objective Lenses
Lineup of Objective Lenses		 DFPL2x/DPFL1.5x /DFPL 0.75x /DFPL 0.5x
The DFPL series of objectives accurately reproduce sample shapes with outstanding color fidelity.

DFPLAPO 1.25x /DFPLAPO1x4
Aprochromatically corrected to achieve the highest degree of performance. Excellent resolving power, contrast, and image flatness with minimum distortion.

SZX-ACH1.25x /SZX-ACH1x
Well-balanced objectives that combines high resolving power with long working distance.

Stands and Illumination Units

Low-profile LED Illumination Base
Low-profile LED Illumination Base

The Olympus SZX series features the unique Olympus LED base system for fine control of transmitted illumination and bright, even images. With the ultra-slim 40 mm base, the SZX2 series has the ergonomic stage height available.  Moreover, a novel carousel makes it easy to select and control brightfield, darkfield, and oblique illumination. The long-life LEDs do not heat the stage or sample, greatly enhancing the flexibility for material stereo microscopy.
Research Stereomicroscope System SZX10 Specifications
Optical System Galilean Optical System
Total Magnification 3.15x-378x*1
Zoom Body Zoom Ratio 10 (0.63x-6.3x)
AS Built-in
Observation Tube Binocular/Trinocular/Tilting Trinocular Observation Tube
Extendable Eyepoint Adjuster SZX2-EEPA
Focus Focusing Unit/Coarse Fine Focusing Unit/Heavy-duty Coarse Fine Focusing Unit/Motorized Focusing Unit
Objective Lens Magnification Type N.A. W.D. (mm) Total Magnification *2 *3 Field Diameter of View (mm)*2 *3
0.5x Plan Achromat 0.05 171 3.2x-31.5x Ø69.8-Ø7
0.75x Plan Achromat 0.075 116 4.7x-47.3x Ø46.6-Ø4.7
1x Plan Apochromat 0.1 81 6.3x-63x Ø34.9-Ø3.5
Achromat 0.1 90 6.3x-63x Ø34.9-Ø3.5
1.25x Plan Apochromat 0.125 60 7.9x-78.9x Ø27.9-Ø2.8
Achromat 0.125 68 7.9x-78.9x Ø27.9-Ø2.8
1.5x Plan Achromat 0.15 45.5 9.5x-94.5x Ø23.3-Ø2.3
2x Plan Achromat 0.2 33.5 12.6x-126x Ø17.5-Ø1.7
Dimensions (W x D x H) 285 mm x 335 mm x 400 mm
Weight 7 kg (in Standard Configularion)
Remark *1 total magnification range possible by combining an objective lens and eyepiece
*2 in the case of using eyepiece 10x
*3 SZX2-LTTR: intermediate magnification is 1.25X, SZX2-ILLC10: intermediate magnification is 1.5X
