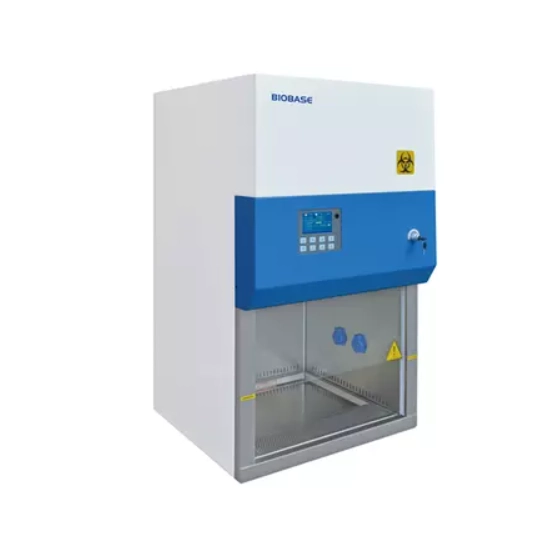

Biosafety Cabinet class ii a2 60x50x54cms biobase

Three protection: operator, sample and environment. Airflow system: 70 % air recirculation, 30% air exhaust A2 Cabinet is suitable for working with microbilogical research in the absence of working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.









Advantage:

1. Small dimension, save space.

2. Centrifugal fan, speed adjustable; H14 HEPA filter.

3. Motorized front window: The front window is motorized for convenient, one-hand operation.

4. Audio and visual alarm: Abnormal airflow velocity, Filter replacement, Front window at unsafe height.

5. Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.

6. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.

7. Large LCD display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

8. With memory function in case of power-failure.



Models:

Model	11231 BBC 86
External Size (W*D*H)	700*650*1230 mm
Internal Size (W*D*H)	600*500*540mm
Tested Opening	Safety Height 200 mm?8’’?
Max Opening	370mm(15’’)
Inflow Velocity	0.53±0.025 m/s
Down flow Velocity	0.33±0.025 m/s
HEPA Filter	Two, 99.999% efficiency at 0.3μm. Filter life indicator.
Front Window	Motorized. Toughened glass . Anti UV.
Noise	EN1249 ≤ 58 dB / NSF49 ≤ 61dB
UV Lamp	30W*1
	UV timer, UV life indicator, emission of 253.7 nanometers  for most efficient decontamination
LEDLamp	8W*2
Illumination	≥1000Lux
Consumption	500W
Sockets	Two, total load of two sockets: 500W
Display	LCD display
Control System	Microprocessor
Airflow System	70% air recirculation,30% air exhaust
Visual and AudioAlarm	Filter replacement, window over height, abnormal air flow velocity
Material	Work Zone: 304 stainless steel.
	Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	750mm with optional base stand
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory	LEDlamp, UV lamp*2,Remote control, Waterproof sockets*2
Optional Accessory	Base stand, Universal caster with brake and leveling feet, SS Water tap*1, Gas tap*1
Gross Weight without Base Stand	Wooden Box:164kg                Carton:121kg
Gross Weight with Base Stand	Wooden Box:196kg
Package Size without Base Stand(W*D*H)	Wooden Box: 860*800* 1450 mm    Carton:820*760*1430mm
Package Size with Base Stand(W*D*H)	Wooden Box: 860*960* 1450 mm



Standard Accessory?

LED Lamp                            1pc

UV lamp                              2pcs

Remote control                    1pc

Waterproof sockets              2pcs



Optional Accessory:

Water and gas tap, base stand, universal caster with brake and leveling feet
