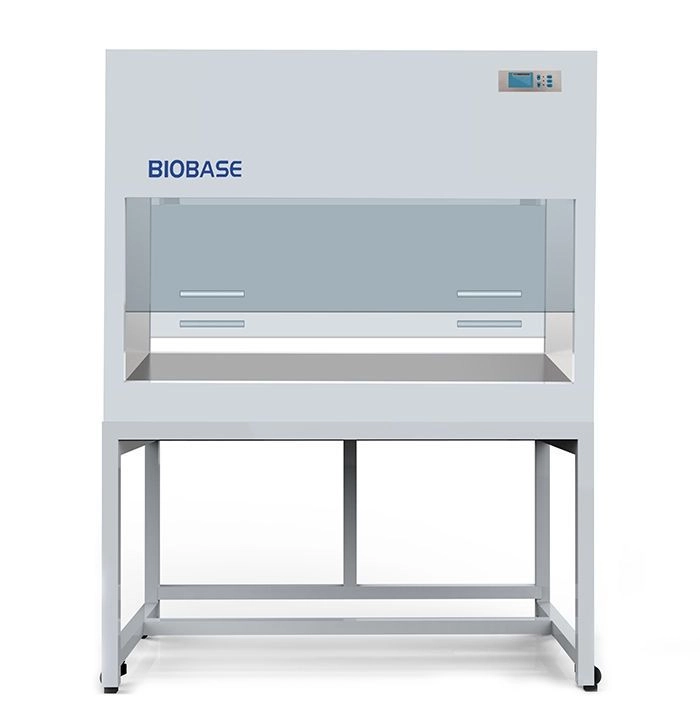

Biobase Vertical Laminar Flow Cabinet

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

BBS-DSC/BBS-SSC Lab/Medical furniture equipment Double Sides Type Vertical Laminar flow cabinet





Summary

Laminar Flow Cabinet-sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.



Features

LED Display
Microprocessor control system, LED display.

UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.

Double Sides
Double sides work bench, operators can sit face to face.





Parameters

Model	BBS-DSC	BBS-SSC
External Size (W*D*H)	1040*660*1770mm	1440*660*1770mm
Internal Size (W*D*H)	940*560*545mm	1340*560*545mm
Work Surface Height	750mm
Display	LED Display
Airflow Velocity	Average of 0.3~0.5m/s
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Work Table: 304 stainless steel
Pre-filter	Polyester fiber, washable
HEPA Filter	99.999% efficiency at 0.3um
Noise	<60dB
Front Window	Manual, 5mm toughened glass, anti-UV
Max Opening	350mm	350mm
UV Lamp	18W*1	30W*1
	Emission of 253.7 nanometers
Fluorescent Lamp	21W*1	28W*1
Consumption	350W	600W
Caster	Universal caster with leveling feet
Power Supply	AC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ
Standard Accessory	Fluorescent lamp, UV lamp*2, Base stand
Gross Weight	150kg	174kg
Package Size (W*D*H)	1190*890*1340mm	1590*890*1340mm



Standard Accessory

Fluorescent lamp 1pc
UV lamp 2pcs
Base stand 1pc
