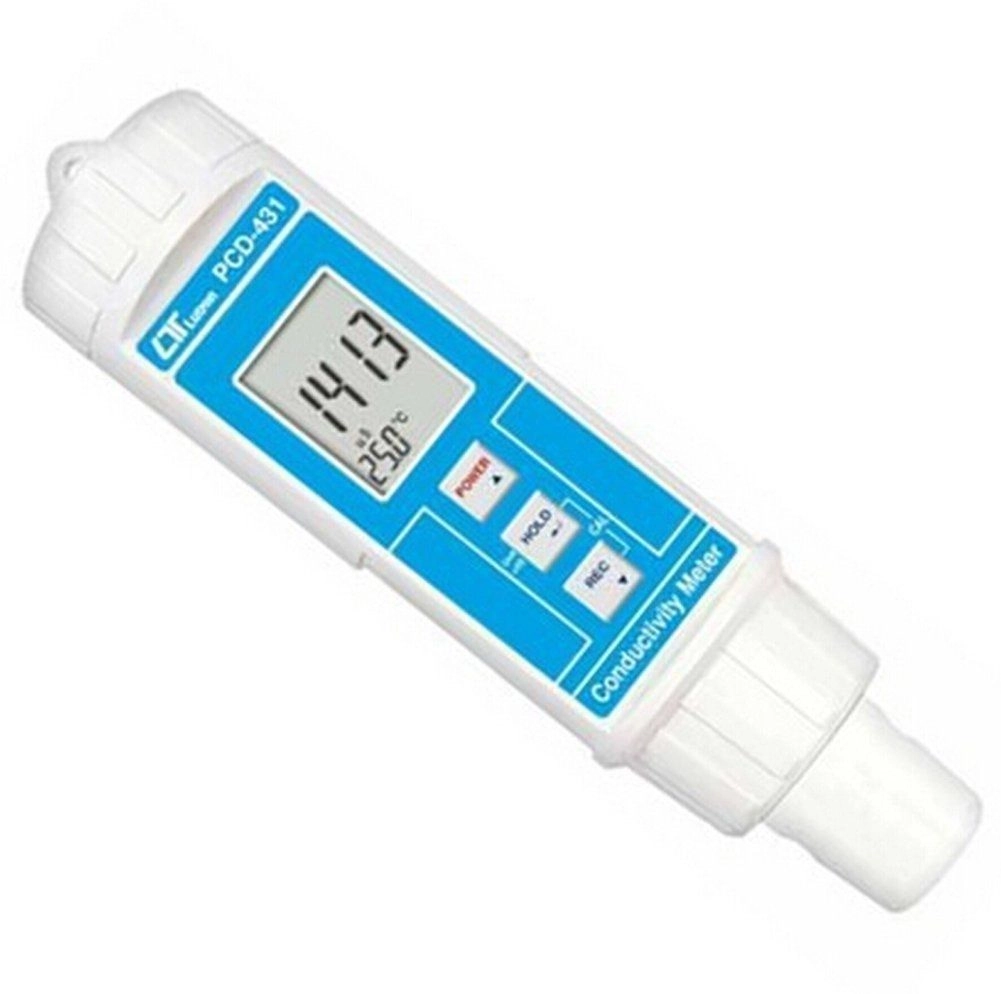

LUTRON PCD-431 CONDUCTIVITY METER HANDY vistaartrade.com

The Lutron PCD431 is an economical yet rugged pocket tester for conductivity and TDS. It is autoranging with selectable TDS or conductivity, and so replaces up to 4 different models from our main competitor. Accuracy is +/-3% of fullscale. Because of the adjustable ATC factor, good accuracy is possible over a wide temperature range. Auto power off and rugged IP67 and sensor cover makes this a very handy mobile tool.

FEATURES

* All in one pen type conductivity meter provides fast,

accurate readings with digital reading.

* Conductivity measurement ( uS, mS ) or TDS

( Total Dissolved Solids, ppm ) can be selected.

* Conductivity : Two ranges, 2,000 uS, 20.00 mS.

* TDS : Two ranges, 20,000 ppm, 2,000 ppm.

* Carbon rod electrode for long life.

* Build in temperature sensor, ATC ( auto temperature

compensation ).

* Temperature measurement, ?, ?.

* IP67, water proof and protection.

* LCD with two displays show conductivity and Temp value at

same time.

* Data hold function for freezing the desired value.

* Auto power off to save the battery life.

* Records max. and min. value with recall.

* Microcomputer circuit, intelligent function, high accuracy.

* Compact size, light weight.

* Power supply by DC 1.5 V battery ( UM4/AAA ) x 4 PCs,

* Available for wide applications, such as aquarium, beverage,

fish hatcheries, food processing, photography, laboratory, quality

control, school & colleges, swimming pools, water conditions.

SPECIFICATIONS

Display	LCD, size : 20 mm x 28 mm.
Measurement	* Conductivity ( uS, mS ) * TDS ( Total Dissolved Solids, ppm ) * Temperature ( ?,?)
Ranges * two ranges * auto range	Conductivity: 2000 uS, 20.00 mS
Ranges * two ranges * auto range	TDS : 2,000 ppm 20,000 ppm
Accuracy * 23 ± 5 ?	± ( 2% FS + 1 d ) * FS : full scale
Temperature Compensation	Automatic from 0 to 60 ? (32 - 140 ?), with temperature compensation factor variable between 0 to 5.0% per C.
Conductivity Probe Structure	Carbon rod electrode for long life.
Data Hold	Freeze the display reading.
Memory Recall	Maximum & Minimum value.
Sampling Time	Approx. 0.8 second.
Circuit	Custom one-chip of microprocessor LSI circuit.
Power off	Auto shut off saves battery life or manual off by push button. * Power will off automatically after 10 min., if no button be pressed.

Operating Temperature	0 to 50 ? ( 32 to 140 ? ).
Operating Humidity	Less than 80% RH.
Power Supply	DC 1.5V battery ( UM-4/AAA ) x 4 PCs.
Power Consumption	Approx. 5.7 mA.
Dimension	190 x 40 x 40 mm ( 7.5 x 1.6 x 1.6 inch ).
Weight	171 g/0.38 LB.
Standard Accessories	Instruction Manual........................... 1 PC
Power off	Auto shut off saves battery life or manual off by push button. * Power will off automatically after 10 min., if no button be pressed.
Standard Accessories	Instruction Manual........................... 1 PC
Optional Accessories	* Soft carrying case with sash ( 210 x 80 x 50 mm ), Model : CA-52A * Hard carrying case ( 280 x 195 x 65 mm ), Model : CA-06 * 1.413 mS Conductivity Standard Solution, Model : CD-14A

ELECTRICAL SPECIFICATIONS (23± 5 ?)

A. Conductivity

Range

Measurement

Resolution

Accuracy

2000 uS

0 to 2000 uS

1 uS

± (3% 0.S.+1d)

* 0.S. - Full scale

20 mS

2 to 20.00 mS

0.01 mS

* Auto range.

* Temperature Compensation :

Automatic from 0 to 60 ? ( 32 - 140 ? ), with temperature

compensation factor variable between 0 to 5.0% per C.

* mS - milli Simens

* uS - micro Simens

* 23± 5?

B. TDS ( Total Dissolved Solids )

Range	Measurement	Resolution	Accuracy
2,000 ppm	0 to 1,320 ppm	1 ppm	± (3% 0.S.+1d) * 0.S. - Full scale
20,000 ppm	1,320 to 13,200 ppm	10 ppm	± (3% 0.S.+1d) * 0.S. - Full scale
* Auto range. * Temperature Compensation : Automatic from 0 to 60 ? ( 32 - 140 ? ), with temperature compensation factor variable between 0 to 5.0% per ?. * ppm - parts per million * 23± 5?

C. Temperature

Function	Measuring Range	Resolution	Accuracy
?	0 ? to 60 ?	0.1 ?	0.8 ?
?	32 ? to 140 ?	0.1 ?	1.5 ?
@ 23± 5?
