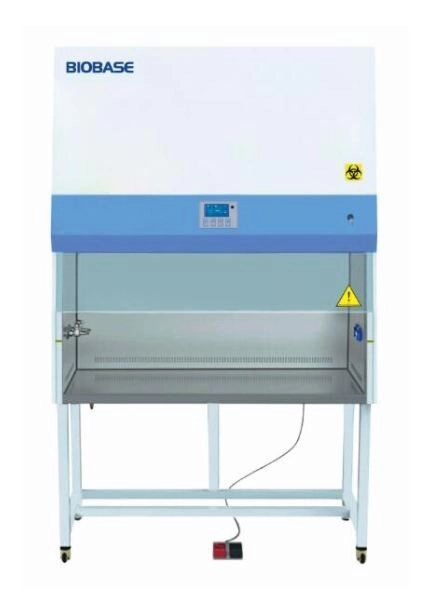

BIOBASE Biosafety Cabinet Class II 1150x600x660 mm - BSC-1300IIA2-X

--LCD Display

--Work Zone

--Remote Control

--UV lamp

--Front Window

--Footmaster caster

--Foot Switch

Technical Parameters

Model:BSC-1300IIA2-X

Internal Size(W*D*H): 1150*600*660 mm

External Size(W*D*H):1300*750*2250 mm

Tested Opening:Safety Height 200 mm(8’’)

Max Opening:420mm(17’’)

Inflow Velocity:0.53±0.025 m/s

Downflow Velocity:0.33±0.025 m/s

HEPA Filter:Two, 99.999% efficient at 0.3 um. Filter life indicator.

Front Window:Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.

Noise:EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp:30W* 1, UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

Fluorescent Lamp:21W*2

Illumination:≥1000Lux

Consumption:800W

Waterproof Sockets:Two, total load of two sockets: 500W

Display:LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System:Microprocessor

Airflow System:70% air recirculation, 30% air exhaust

Visual and audio alarm:Filter replacement, window over height, abnormal air flow velocity.

Material:Work Zone: 304 stainless steel | Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height:750mm

Caster:Footmaster caster

Power Supply:AC220V±10%, 50/60Hz; 110V±10%, 60Hz
