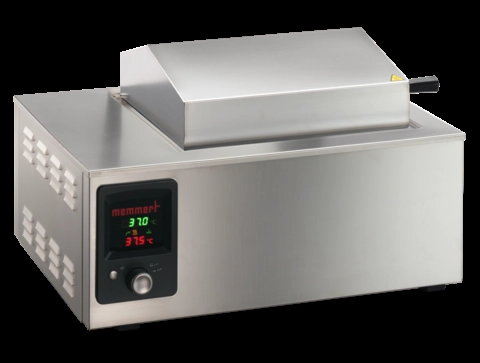

Memmert WaterBath WNB 14 , 6 Holes

The combination of corrosion-resistant stainless steel, precise electronics and multiple temperature protection guarantees the highest level of safety in the laboratory.

Properties

Temperature

Temperature range in °C:min. 5°C above ambient up to +95°C with additional boiling mode (+100°C)

Control of standard components

Temperature:1 Pt100 sensor class A in 4-wire-circuit

Timer:Integrated digital timer from 1 min. to 99,59 hours for: ON continuous operation WAIT (delayed on for continuous and limited timed operation) HOLD

Safety

Temperature control:Mechanical temperature limiter TB protection class 1 switching the heating off at approx. 30°C above max. temperature of the bath

Temperature control:in case of over temperature due to failure, the heating is switched off at approx. 10°C above the set temperature (fixed value)

Autodiagnostic system:Microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator

Heating concept

Heating Baths:Corrosion-proof large-area heating on three sides

Standard equipment

Controller:digital display (LED) of set and actual temperature (0,1°C resolution) and of (remaining) programme time

Stainless steel interior

Dimensions W x H x D in mm:w(A) x h(C) x d(B): 350 x 290 x 140 mm

Interior:easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded

Volume:14 l

Liquid level min.:(H) 97 mm

Liquid level max.:(I) 120 mm

Textured stainless steel casing

Dimensions:w(D) x h(G) x d(E): 578 x 436 x 238 mm

Electrical data

Voltage:230 V, 50/60 Hz

Electrical load:approx. 1800 W (during heating)

Packing/shipping data/Setting Up

Installation:The vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm.

Transport information:The appliances must be transported upright

Customs tariff number:8419 8998

Country of origin:Federal Republic of Germany

WEEE-Reg.-No.:DE 66812464

Dimensions approx incl. carton:B x H x 1: 670 x 530 x 400 mm

Net weight:approx. 15 kg

Gross weight carton:approx. 21 kg
