6 W Recess Light Wipro

Sold by: Multitech Trade Circle Pvt. Ltd


Rs 735


Minimum Order Quantity: 20 PCS


Description

Home/ Home Lighting/ Decor lighting & Accessories/ Ceiling Lamps / Wipro Ceiling Lamps

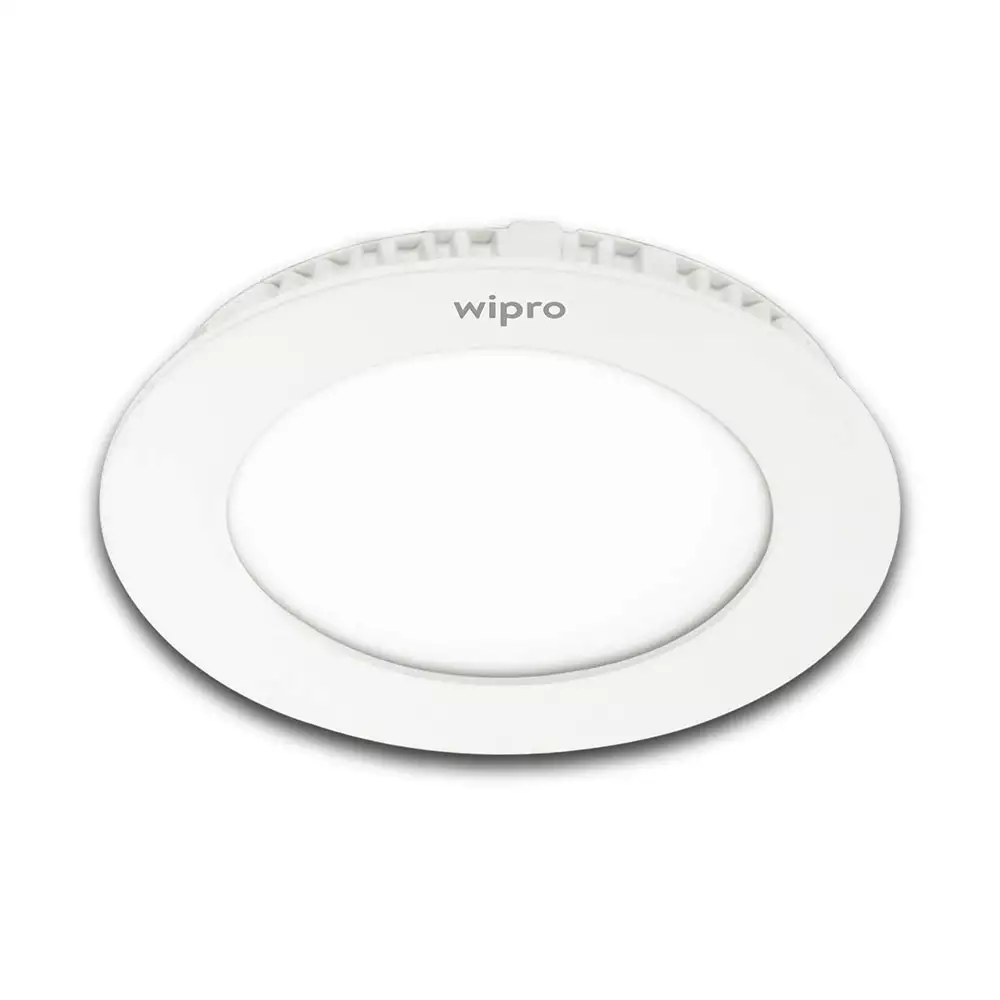

Wipro 6 Watt Iris 6500K / 4000K / 3000K Recessed Slim LED Down Lighter



Dimension Round 4.0 Inch

D...See more

Wholesaler/Dealer/Distributor


Assured Image

Home/ Home Lighting/ Decor lighting & Accessories/ Ceiling Lamps / Wipro Ceiling Lamps

Wipro 6 Watt Iris 6500K / 4000K / 3000K Recessed Slim LED Down Lighter



Dimension Round 4.0 Inch

Dimension Square (L" x W") 4.0 Inch x 4.0 Inch



Highlights

  • Material: Aluminium
  • Cord Length: 4 Inch
  • Light Used: LED
  • Assembly Required
  • 1 Bulbs



Seller Multi Tech Trade Circle Pvt. Ltd



General

Brand
  • Wipro
Model Number
  • LD80-350-XXX-40-EX
Brand Color
  • White
Type
  • Recessed
Number of Lights
  • 1
Material
  • Aluminium
Color
  • White / Day Light / Warm
Light Used
  • LED



Ref: Rev-0/22-23/30-12-2022

TECHNICAL SPECIFICATION SHEET

IRIS SLIM RECESS MOUNTED ROUND SLIM PANEL

Technical Specification of LED Luminaire



Iris Slim Round Panel

S.No Technical Parameters



Product Image



Luminaire Specifications
1 Ambient Temperature (°C) 0-45
2 Operating Frequency (Hz) 50 ± 3%
3 Rated Voltage (V)(AC) 230
4 Input Voltage Range (V)(AC) 150 - 270
5 Driver type (external/internal) Internal
6 IP rating IP20
7 Housing Aluminium die cast
8 Mounting Arrangement Recess Mount
9 Diffuser/Optical material HET Plastic diffuser
LED Specifications (Nominal)
10 Colour Temperature (K) 3000/4000/6000
11 LED life with L70 criteria 35,000 Hrs
12 CRI 80
Driver Specifications(Nominal)
13 Surge Protection (kV) 2.5
Other Details
14 LED CCT Binning ANSI Bin C78.377A
15 LED Photo biological safety report IEC 62471
16 Electrical Insulation Class Class I




Product Code



System Wattage(W)

PF @ Full load & Rated voltage THD(Ithd%) @ Fullload & Rated voltage System lumens (±10%)



Driver Efficiency(%)@Full load & Rated voltage

LD80-350-XXX-30-XX 6±2W ≥0.90 ≤20 360 ≥80%
LD80-350-XXX-40-XX 6±2W ≥0.90 ≤20 360 ≥80%
LD80-350-XXX-60-XX 6±2W ≥0.90 ≤20 390 ≥80%
LD80-530-XXX-30-XX 9±2W ≥0.90 ≤20 585 ≥85%
LD80-530-XXX-40-XX 9±2W ≥0.90 ≤20 585 ≥85%
LD80-530-XXX-60-XX 9±2W ≥0.90 ≤20 630 ≥85%
LD80-101-XXX-30-XX 12±2W ≥0.90 ≤20 840 ≥85%
LD80-101-XXX-40-XX 12±2W ≥0.90 ≤20 900 ≥85%
LD80-101-XXX-60-XX 12±2W ≥0.90 ≤20 960 ≥85%
LD80-131-XXX-30-XX 15±2W ≥0.90 ≤20 1050 ≥85%
LD80-131-XXX-40-XX 15±2W ≥0.90 ≤20 1125 ≥85%
LD80-131-XXX-60-XX 15±2W ≥0.90 ≤20 1200 ≥85%
LD80-171-XXX-30-XX 18±2W ≥0.95 ≤20 1260 ≥85%
LD80-171-XXX-40-XX 18±2W ≥0.90 ≤20 1350 ≥85%
LD80-171-XXX-60-XX 18±2W ≥0.90 ≤20 1440 ≥85%

Note: All values are Nominal. Tolarance as per relevant Indian standards applicable



  1. Data is subject to change without notice.
  2. Wipro reserves the right to make changes to this productat any timewithout prior noticeand such modifications shall be effective with immediate effect.
Prepared By Checked By Approved By
NL QA Team AM
