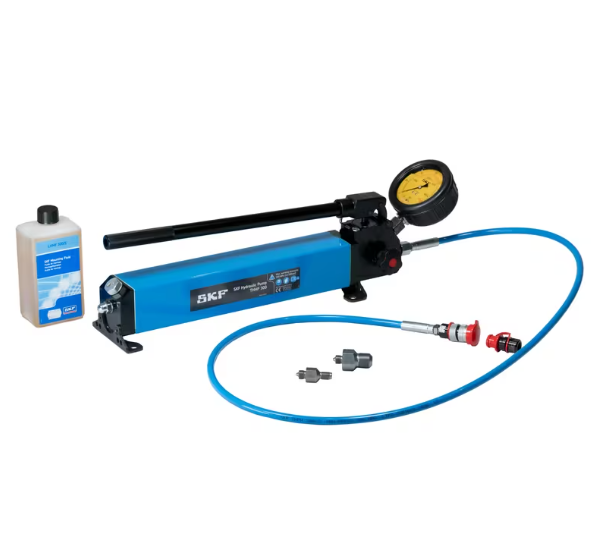

SKF Hydraulic Pump THHP 300

Dimensions (W x L x H)

130 x 574 x 200 mm

Case dimensions (L x H x W)

920 x 318 x 380 mm

Performance

Value

Maximum Pressure

3,000 bar

Maximum pressure

300 MPa

Type

Hand operated pump

Recommended applications

Applications using the SKF Oil Injection Method

Type of pump

Two-stage

Volume per stroke, 1st stage

40 cm³, below 1.6 MPa

Volume per stroke, 2nd stage

0.5 cm³, above 1.6 MPa

Oil container capacity

1,600 ml

Pressure gauge

Yes, analogue

Hose length

2,000 mm

Filled with oil

Yes, with SKF Mounting Fluid LHMF 300

Handle force at maximum oil pressure

390 N

Connection nipple

G1/4 (male) and G3/4 (male)

Suitable for Drive up method

No

Housing material

Light aluminum engineering alloy

Colour

Blue, Black

Operating temperature range

10.0 – 35.0 °C

Recommended storage temperature

10.0 – 40.0 °C

Relative humidity

0 to 75%, non-condensing

Product weight

7.5 kg

Content

Pump with mounting fluid, pressure hose, quick connection coupling, quick connection nipple, 2 connection nipples, pressure gauge, tool case, 1l can of mounting fluid

Total product weight

9.1 kg

Logistics

Value

Product net weight

9.11 kg

eClass code

23-05-19-01

UNSPSC code

27112908
