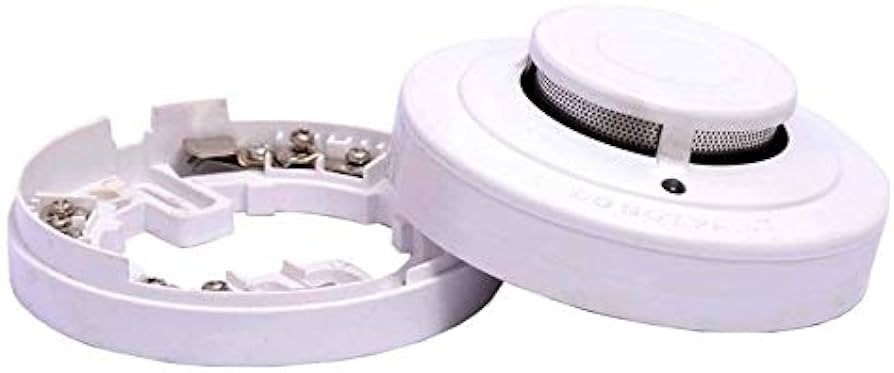

Palex Optical Smoke Detector

Product Description

• -Dual LED for 360 degree visibility
• -Advance algorithms provides advanced detection discrimination
• -Easy Installation
• -High immunity against unwanted alarms
• -Stable optical smoke sensing chamber, No adjustment or replacement required
• -2 wire based detector
• -Low maintenance

Technical Features

• Operating Voltage Range :9 to 32 VDC Volts Non- polarized
• Standby Current :<=100µA  24 V DC
• Maximum Alarm Current (LED on) :<=55mA  24 V DC
• Operating Humidity Range :10% to 93% Relative Humidity, Non-Condensing
• Operating Temperature Range :14º F to 120º F (-10º C to 49º C)
• Height :2.2'' (55 mm) installed in Base
• Weight :5.5 oz. (155 g)
• Adjustable Senstivity :1-2.5%/FT
• Diameter :4.0'' (103 mm)
