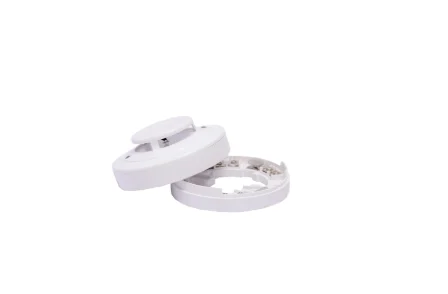

Palex Heat Detector

Product Features

• -Rate of rise cum fix Temperature type
• -Dual LED for 360 degree visibility
• -Easy installation
• -Advance algorithms provides advanced detection discrimination
• -High immunity against unwanted alarms
• -Stable heat chamber, No adjustment or replacement required
• -2 wire based detector
• -Low maintenance
•

Technical Features

• -Height :2.2'' (55 mm) installed in base
• -Installation Temperatures :14ºF to 122ºF (-10º C to 50 ºC)
• -Operating Humidity Range :10% to 93% Relative Humidity Non- polarized
• -Operating Voltage Range :9 to 28 V DC Volts non-ploarized
• -Maximum Alarm Current (LED on) :<=30mA @ 24V DC
• -Weight :5.5 oz. (155 g)
• -Diameter :4.0'' (103 mm)
• -Standby Current :40µA @ 24 V DC
• -Fixed Temperature Rating :135ºF (57ºC)
