Refrigeration - Condensing Unit

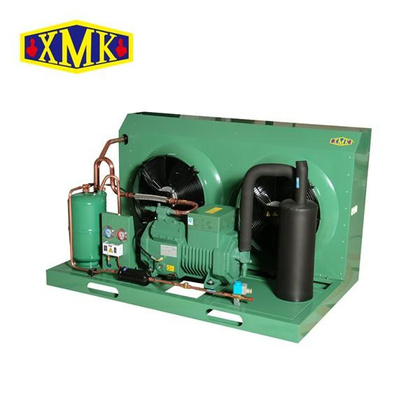

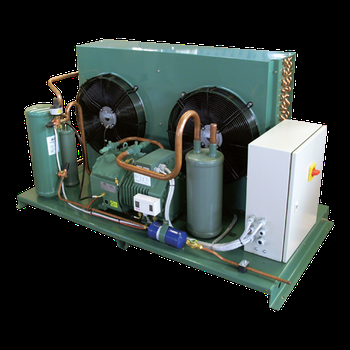

The Medium and High Temperature Air-Cooled Condensing Unit Semi-Hermetic Series presents four models: GXW3CQFZG, GXW5CQFZG, GXW10CQFZG, and GXW15CQFZG, designed to accommodate varying cooling requirements. Ranging from 3HP to 15HP, these units operate within a temperature range of -5°C to -40°C, employing the refrigerant R404A and powered by a 380V 50HZ supply. The condenser features a specified quantity of fans, air volume, and power for efficient cooling. The refrigerating capacity of compressor units is delineated across different evaporating temperatures. Tube and suction coupling sizes ensure seamless installation, offering flexibility for diverse applications. The overall and mounting dimensions provide comprehensive insights into each unit's physical specifications. Standard configurations include a compressor, condenser, liquid receiver, pressure controller, pressure gauge, filter, solenoid valve, and wiring box. Cooling capacity calculations are based on an ambient temperature of 32°C, and configurations can be tailored to meet specific customer requirements. It is noteworthy that when the compressor utilizes refrigerant R-404A and operates at an evaporating temperature lower than -20°C, a cylinder head fan must be installed for optimal performance.
