Ipanel

Category: Building & Construction

Subcategory: Roofing and False Ceiling

Brand: Not Mentioned

Sold by: Building Elements Private Limited

Minimum Order Quantity: 1 PCS

Description

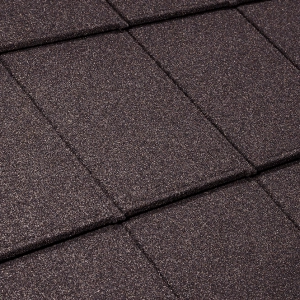

The iPanel is an six tile, stone-coated panel pressed from a high grade of protective layer and is available in a wide selection of colours to enhance any exterior colour scheme.

SPECIFICATI...See more

B

Seller Information
Building Elements Private Limited

Wholesaler/Dealer/Distributor

Assured Image

The iPanel is an six tile, stone-coated panel pressed from a high grade of protective layer and is available in a wide selection of colours to enhance any exterior colour scheme.

SPECIFICATIONS

  in METRICS in IMPERIALS
Minimum pitch 10° 2/12
Maximum pitch 90° vertical
Size - overall* 1340 x 430 mm 52.76" x 16.93"
Size - cover* 1230 x 375 mm 48.43" x 14.76"
Gauge of steel** 0,45 mm 26 gauge
Linear cover width* 1230 mm 48.43"
Cover* 2,17 pc/m² 20.14 pc/square
Cover of a panel* 0,46 m² 4.96 ft²
Weight per panel* 3,29 kg 7.26 lb

* The measurements and the weight may vary slightly by the finish that is added to the panel.
** Steel thickness according to the EN 10346.
