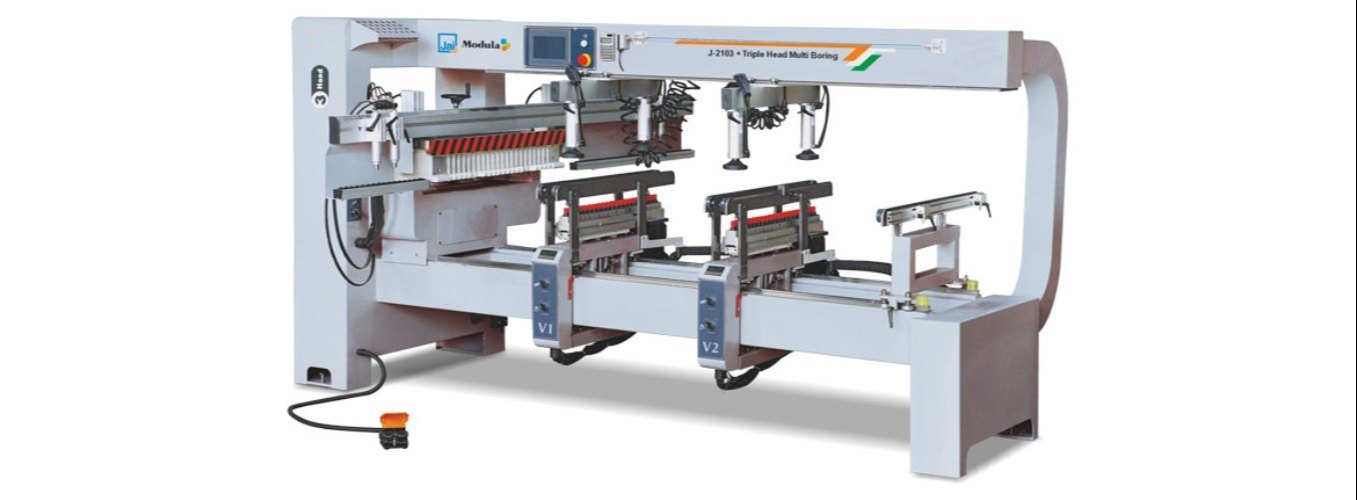

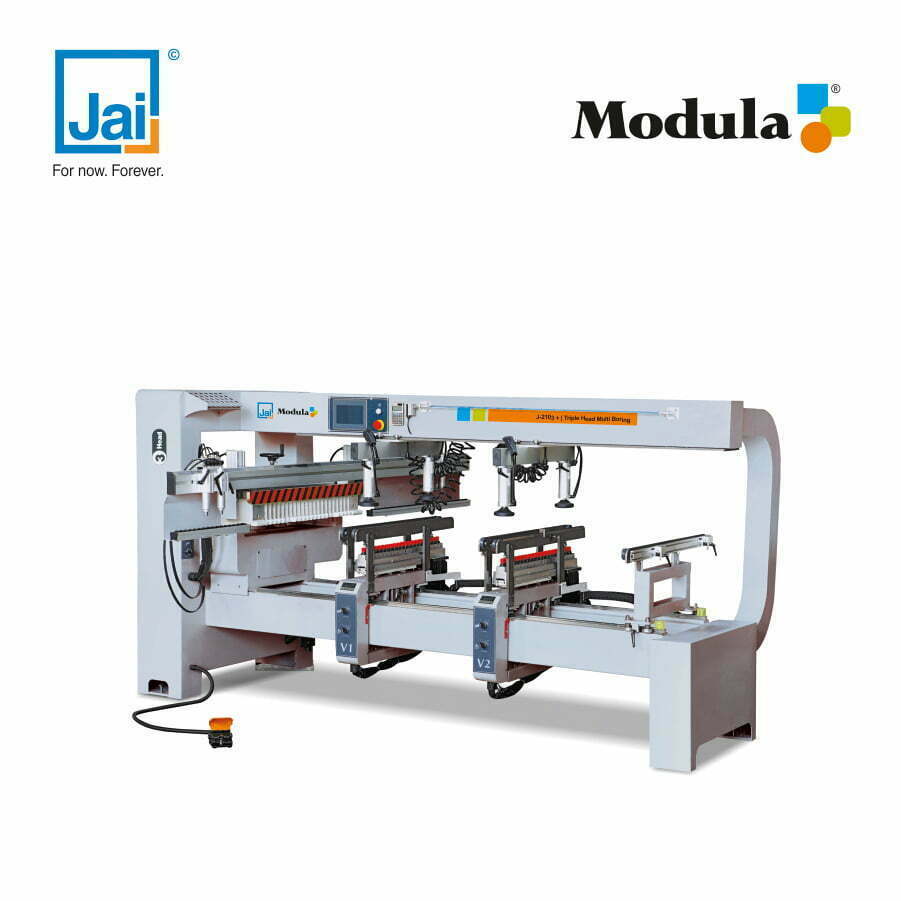

Triple Head Multi Boring Model No.J-2103+

Category: Industrial Supplies and Machinery

Subcategory: Drilling & Boring Equipment

Brand: Jai Industries

Sold by: New Shrestha Machinery Concern

Assured Image

Minimum Order Quantity: 1 PCS

Dimension (L x W x H)

Max. Size of Workpiece: 1850 mm x 640 mm

Usage

Triple Head Multi Boring

Model Number

J-2103 +

Net Weight

Not Available

Material

Heavy Duty Frame Structure and Strong Supports for Stability

Load Capacity / Life Cycle

No. of Spindle Head: Three / No. of Spindles per Head: 21 nos / Total Spindles: 21 + 21 + 21 = 63 nos

Thickness

Max. Working Thickness: 60 mm / Drilling Depth: 0 - 50 mm (Drill Length: 70 mm)

Power (W)

Electric Motor / Total Power: 3 x 2 hp = 6 hp

N

Seller Information
New Shrestha Machinery Concern

Wholesaler/Dealer/Distributor

verified image
Verified Supplier
Assured Image

Salient Features :


-Automatic Boring machine equipped with 1 horizontal & 2 rotating vertical boring heads (0 - 90°) with 21 spindles for executing holes in a line for wardrobe side processing of knock down furniture.

  • -Motorized Vertical heads with electronic programmed.
  • -Quick change spindles.
  • -Strengthened frame to hold boring heads.
  • -Adequate and effective pneumatic heads.
  • -Easy and quick setting to regulate drilling depth.
  • -Smart Touch PLC control panel.
  • -Auxiliary support frame gives better solution for long panels with flip over brackets. Foot switch for convenient operation of the machine.
