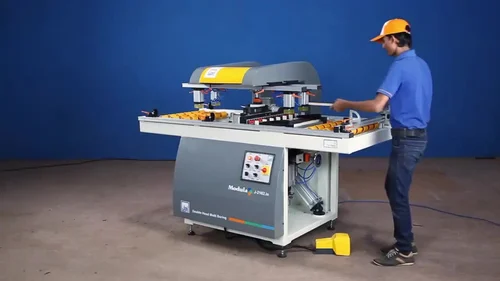

Double Head Multi Boring(Semi Auto)/J-2102.in

Available

Minimum Order Quantity: 1 PCS

Model No

J-2102.in

Max. Size of Workpiece

2000 mm x 640 mm

Max. Working Thickness

70 mm

No. of Spindle Head

Two

No. of Spindles per Head

Total Spindles

21 + 21 = 42

Minimum Center Distance Between 2 Vertical Heads

392 mm

Maximum Center Distance Between 2 Vertical Heads

472 mm

Shank Diameter of Drill

10 mm

Drilling Depth

0 - 50 mm (Drill Length: 70 mm)

Electric Motor / Total Power

2 x 2 hp = 4 hp

Machine Dimensions (L x B x H)

2000 mm x 1220 mm x 1340 mm

Approximate Net Weight

500 kg

Wholesaler/Dealer/Distributor

Verified Supplier

-Quick change spindles.

-Strengthened frame to hold boring heads.
-Horizontal & vertical head works simultaneously-one by one on the same setting in single operation.
-Horizontal head tilts from 0° - 90° means work as vertical head, so the both head works parallel.
-Adequate and effective pneumatic clamps.
-Easy & quick setting to regulate drilling depth.
-Elegantly designed, electro pneumatic control panel.
-Reference supports with scale for long panels boring.
-Foot switch for convenient operation of the m/c.
