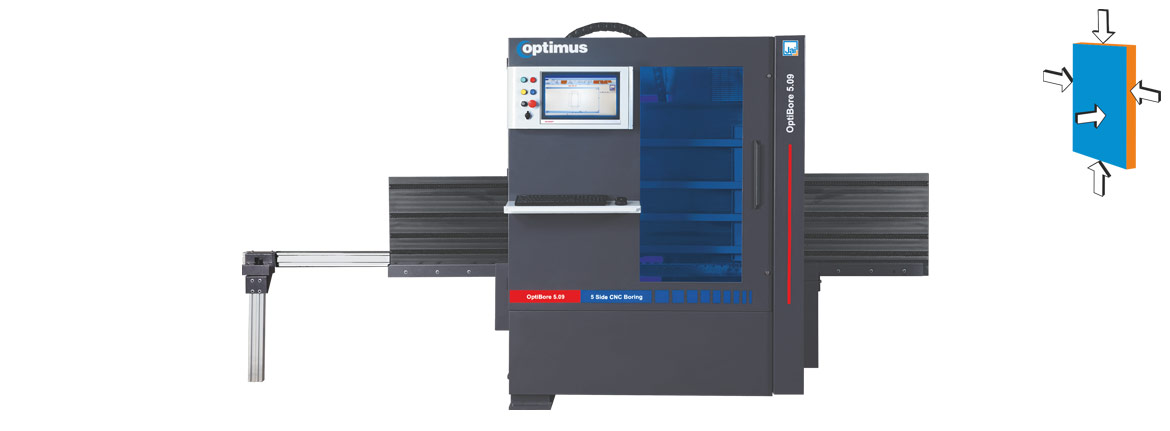

5 Side CNC Boring - OptiBore 5.09

Available

Category: Industrial Supplies and Machinery

Subcategory: Drilling & Boring Equipment

Brand: Jai Industries

Sold by: New Shrestha Machinery Concern

Minimum Order Quantity: 1 PCS

Specification

Details

- Panel Length (max. / min.)

2500 / 200 mm

Control System

15” PC with Beckhoff Control System

- Panel Width (max. / min.)

850 / 70 mm

- Panel Thickness (max. / min.)

60 / 12 mm

- X-Axis

- Y-Axis

- Z-Axis

- Vertical Drilling Spindles

8 no

- Horizontal Drilling Spindles (Y-Direction)

2 no

- Horizontal Drilling Spindles (X-Direction)

4 no

- Tool Shank Diameter

10 mm

- Grooving Saw Diameter (X-Axis)

120Ø mm

- Motor Power (Grooving Saw)

2.2 kW (3 hp)

- Router Spindle Power

6 kW (8 hp)

- Spindle Speed

18000 rpm

- Spindle Collet

ER 32

- Dust Extraction Port

150Ø mm

- Compressed Air Pressure

7 bar

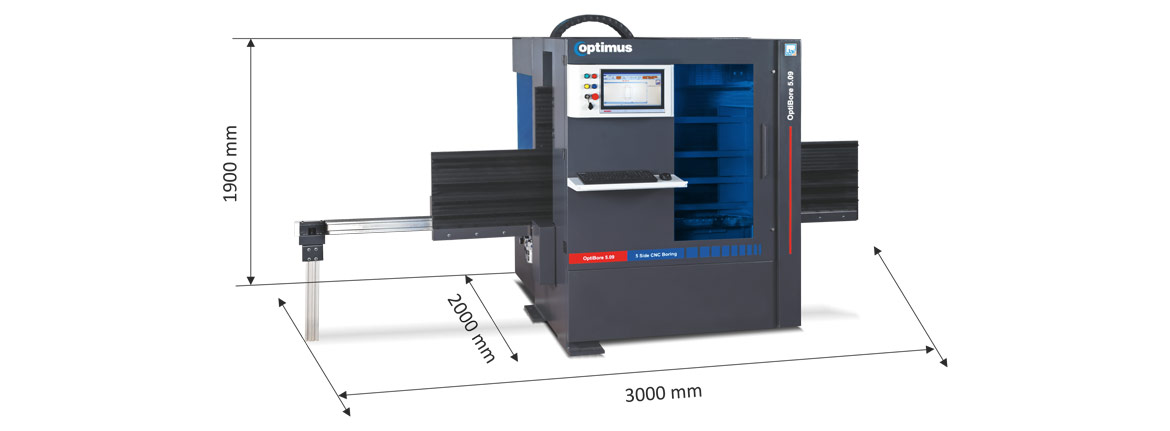

Machine Dimensions (L x B x H)

3000 x 2000 x 1900 mm

- Total Power

12.5 kW (16.7 hp)

Approximate Net Weight

1600 kg

Seller Information
New Shrestha Machinery Concern

Wholesaler/Dealer/Distributor

Verified Supplier

Salient Features :-

-Industrial constantly high performance for continuous operation

-Sturdy design with premium components
-Complete engineering precision with Uncompromised productivity
-Premium user comfort
-Sturdy built heavy-duty machine to suit Indian working condition for precise boring, grooving and routing application.
-High performance machine with High feeding speed gives more production.
-Equipped with BECKHOFF control system and integrated JAI software can edit image of the work pieces and generating NC program directly for processing.
-Ensuring longer machine life, safe operation, reduced unscheduled downtime and more economical operation costs.
