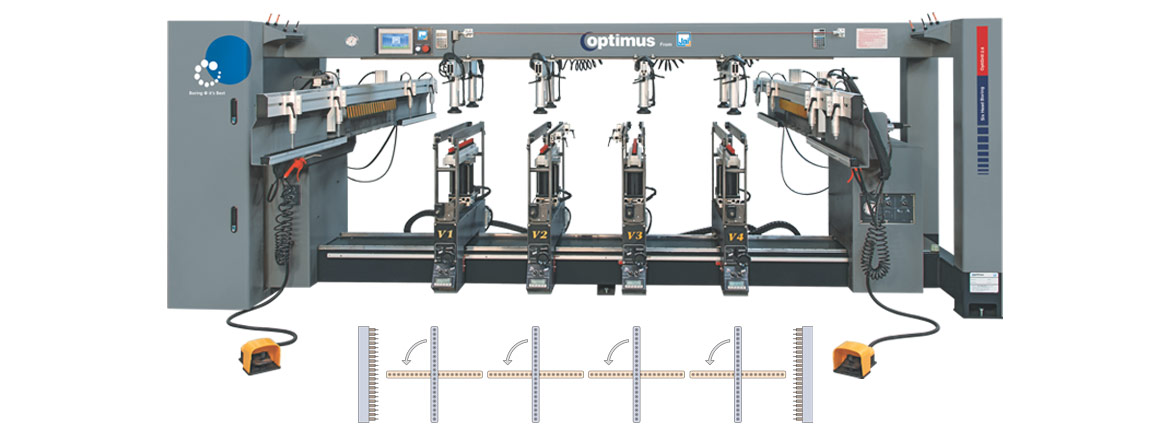

Six Head Boring Model No. OptiDrill 2.6

Available

Minimum Order Quantity: 1 PCS

Model No

OptiDrill 2.6

Maximum Working Thickness (mm)

Maximum Size of Work Piece (mm)

2500 x 640

Number of Spindle Head (no.)

Six (Two Horizontal & Four Vertical)

Total Spindles (nos.)

21 * 6 = 126

Shank Diameter of Drill (mm)

Maximum Drilling Diameter (mm)

Spindle Rotation Speed (rpm)

2800

Drilling Depth (mm)

0 - 50 (Drill Length 70 mm)

Compressed Air Required (Kg/cm²)

6 to 8

Machine Dimensions (L x B x H) (mm)

4400 x 3050 x 1650

Electric Motor - 3 Phase (hp)

6 nos. x 2 hp = 12

Approximate Net Weight (kg)

1700

Wholesaler/Dealer/Distributor

Verified Supplier

-Quick precised & easy setting -up.

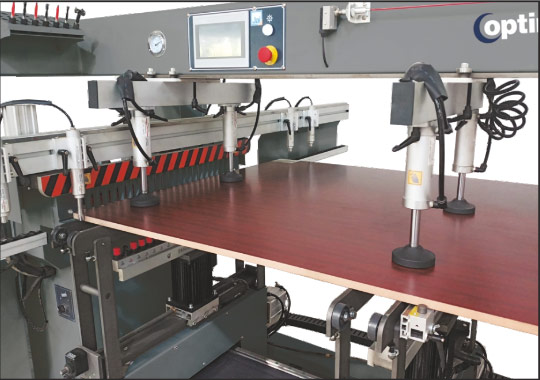

-The vertical boring units slide on heavy rolling guides for a prompt & easy positioning with digital read out.
-Vertical boring units can be turned 90° in order to execute both central and side holes during the same working cycles.
-With cast iron boring heads, highest accuracy & sturdiness, noise is minimized.
-Foot switch for convenient operation of the m/c.
-All electronic parts are from well-known international brands.
-Low maintenance m/c, easy available cost effective spares, best service support.
