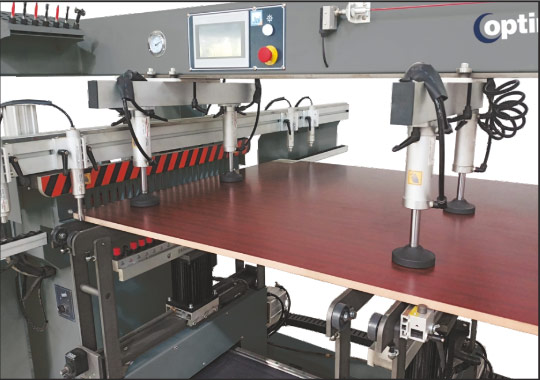

Three Head Boring Model No.OptiDrill 2.3


Minimum Order Quantity: 1 PCS


Model No

OptiDrill 2.3

Number of Spindle Head (no.)

Three (One Horizontal & Two Vertical)

Maximum Size of Work Piece (mm)

2500 x 640

Maximum Working Thickness (mm)

60

Total Spindles (nos.)

21 * 3 = 63

Shank Diameter of Drill (mm)

10

Maximum Drilling Diameter (mm)

32

Compressed Air Required (Kg/cm²)

6 to 8

Spindle Rotation Speed (rpm)

2800

Drilling Depth (mm)

0 - 50 (Drill Length 70 mm)

Electric Motor - 3 Phase (hp)

3 nos. x 2 hp = 6

Machine Dimensions (L x B x H) (mm)

3550 x 3050 x 1650

Approximate Net Weight (kg)

1100


Wholesaler/Dealer/Distributor

verified image
Verified Supplier

Assured Image

Salient Features :-


-Sturdily built heavy duty machine to suit Indian working condition for precise burr free boring.

  • -Strengthened frame to hold boring heads.
  • -Quick précised & easy setting - up.
  • -The vertical boring units slide on heavy rolling guides for a prompt & easy positioning with digital read out.
  • -Vertical boring units can be turned 90° in order to execute both central and side holes during the same working cycles.
  • -With cast iron boring heads, highest accuracy & sturdiness, noise is minimized.
  • -Foot switch for convenient operation of the m/c.
  • -All electronic parts are from well-known international brands.
  • -Low maintenance m/c, easy available cost effective spares, best service support.
