High Speed Auto Edge Bander Model No. OptiEdge 6.5P

Available

Minimum Order Quantity: 1 PCS

Model No

OptiEdge 6.5 P

Work Piece Thickness Range (mm)

10 - 60

Minimum Work Piece Length (mm)

100

Minimum Work Piece Width (mm)

Work Piece Feeding Speed (m/min)

15 - 20 - 25

Edge Banding Thickness for PVC & ABS in Coil Form (mm)

0.4 - 3.0

Pre-Milling Motor Power (no/hp)

2 x 3

Fine Trimming Motor Power (no/hp)

2 x 1

End Cutting Motor Power (no/hp)

2 x 0.5

Round Cornering Motor Power (no/hp)

2 x 0.5

Buffing Motor Power (no/hp)

2 x 0.5

Compressed Air Required (kg/cm²)

6 to 8

Working Temperature Range (°C)

180 - 200

Glue Pot Capacity (kg)

2.0

Total Power (hp)

18.66

Machine Dimensions (L x B x H) (mm)

6000 x 1200 x 1600

Approximate Net Weight (kg)

2000

Wholesaler/Dealer/Distributor

Verified Supplier

-Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with 4 heavy duty pressure rollers.

-Robust feed chain & conveyor system with heavy duty gearbox for effective pressure on panels.

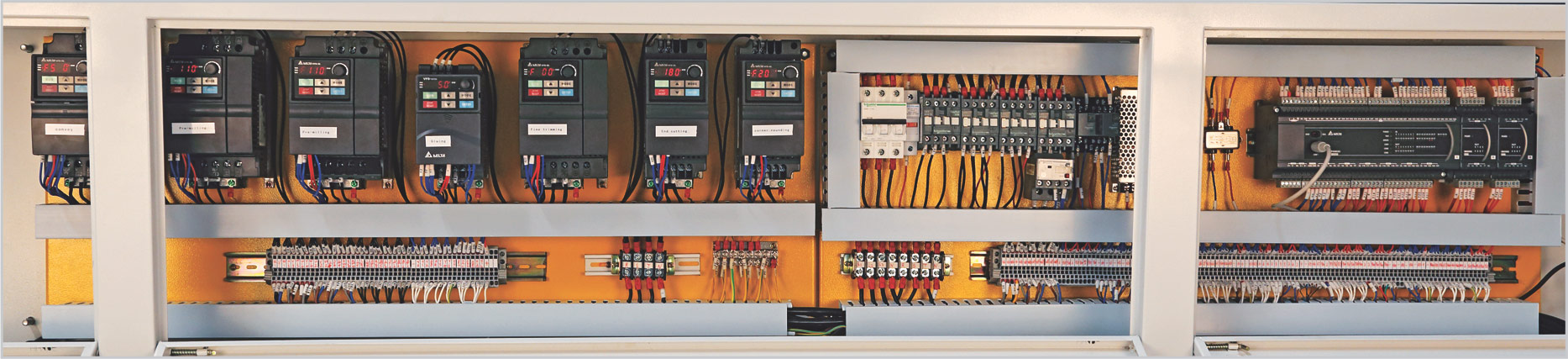

-All electronic & pneumatic parts are from well-known international brands.
-Low maintenance m/c, easy available cost effective spares, best after sales service support.
-High performance machine with High feeding speed up to 25 m/min gives more production.
-Pre-Milling unit with diamond milling cutter for chip free glue joints.
