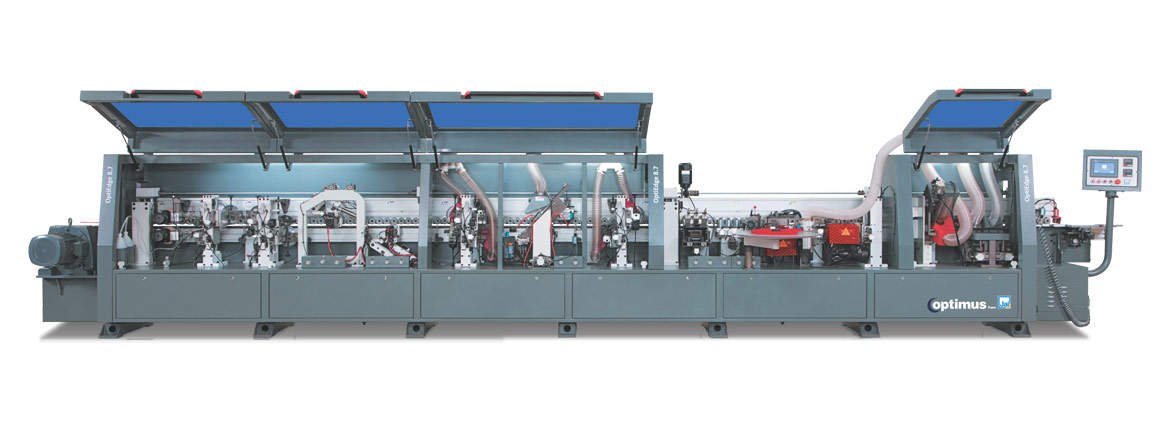

High Speed Auto Edge Bander(45° & 90°) With Round Cornering Model No. OptiEdge 8.7

Work Piece Thickness Range - Inclined 45° Edge (mm)

10 - 25

Model No

OptiEdge 8.7

Work Piece Thickness Range - Full Straight 90° Edge (mm)

10 - 60

Work Piece Size - Width x Length - Full Straight 90° Edge (mm)

80 - 120

Work Piece Size - Width x Length - Inclined 45° Edge (mm)

120 - 150

Edge Banding Thickness for PVC & ABS in Coil Form - Inclined 45° Edge (mm)

0.4 - 2.0

Edge Banding Thickness for PVC & ABS in Coil Form - Full Straight 90° Edge (mm)

0.4 - 3.0

Work Piece Feeding Speed - Inclined 45° Edge (m/min)

15

Work Piece Feeding Speed - Full Straight 90° Edge (m/min)

15 - 20 - 25

Pre-Milling Motor Power (no/hp)

2 x 3

45° Milling Motor Power (no/hp)

1 x 7.5

End Cutting Motor Power (no/hp)

2 x 0.5

90° & 45° Trimming Motor Power (no/hp)

4 x 1

Round Cornering Motor Power (no/hp)

2 x 0.5

Buffing Motor Power (no/hp)

2 x 0.5

Air Pressure Required (kg/cm²)

6 to 8

Working Temperature Range (ºC)

180 - 200

Glue Pot Capacity (kg)

2.0

Total Power (hp)

40.5

Approximate Net Weight (kg)

3000

Machine Dimensions (L x B x H) (mm)

9300 x 1530 x 1600
