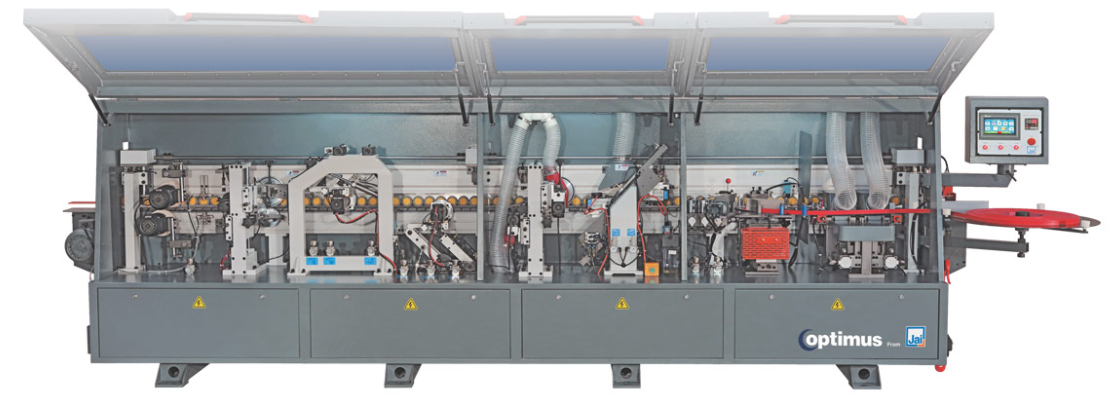

Optimus-OptiEdge 5.5P-Edge Bander with constant high performance for Industrial production at unbeatable price

Available

Minimum Order Quantity: 1 PCS

Work Piece Thickness Range (mm)

12 - 50

Edge Banding Thickness for PVC & ABS in Coil Form (mm)

0.4 - 3.0

Minimum Work Piece Length (mm)

120

Pre-milling Motor Power (No. / hp)

2 x 3

Work Piece Feeding Speed (m/min)

Minimum Work Piece Width (mm)

Compressed Air Required (kg/cm²)

6 to 8

Buffing Motor Power (No. / hp)

2 x 0.5

Round Cornering Motor Power (No. / hp)

2 x 0.5

Working Temperature Range (°C)

180 - 200

Glue Pot Capacity (Kg)

2.0

Total Power (hp)

17.33

Machine Dimension (L x B x H) (mm)

5800 x 1200 x 1600

Approx. Net Weight (kg)

1500

Wholesaler/Dealer/Distributor

Verified Supplier

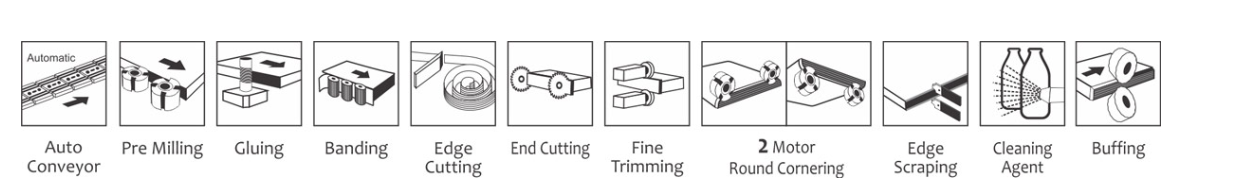

High performance machine with High feeding speed up to 18 m/min gives more production.
Pre-Milling unit with diamond milling cutter for chip free glue joints.
Easy accessible, user friendly Smart Touch PLC control panel. The Corner rounding unit is controlled from the control panel, with the option of choosing the shape of panel.
Motorized up-down movement of pressure beam for easy thickness setting.
Safety air tank provision for non-dropping of air during process.
High frequency motors sliding on heavy prismatic guide ways for perfect finishing with trouble free performance.
Automatic lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with heavy duty pressure rollers.
Robust feed chain & conveyor system with heavy duty gearbox for effective pressure on panels.
All electronic & pneumatic parts are from well-known international brands.
Low maintenance m/c, easy available cost effective spares, best after sales service support.
