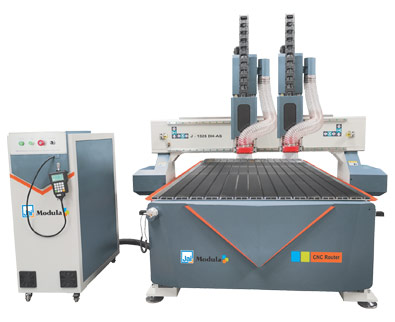

CNC Routers With Stepper Motor Model No.J-1325

Model No

J-1325 With Stepper Motor

X - Y Working Delicacy (mm)

±0.05

Traveling Positioning Accuracy (mm)

±0.1

X - Y - Z Axis Working Area (mm)

1300 x 2500 x 200

X - Y Movement

Rack & Pinion Gear Drive

Z Movement

Ball Screw

Body Structure

Steel Structure with Six Legs

Maximum Speed (mm/min)

35,000

Maximum Cutting Speed (mm/min)

25,000

Spindle (kw/rpm)

3.5 kW / 18,000 RPM Air Cooled Spindle

Drive Motors

Stepper

Inverter (kw)

3.7

Working Voltage

AC 380V / 50Hz, 3Ø

Command Code

G Code

Computer Interface

USB 2.0

Guide Rail

"Hiwin" Taiwan Heavy Duty High Precision Linear Guide Rail

Compatible Software

Art Cam / Type 3

Collet Type & Size

ER25

Controls

Digital Signal Processor (DSP) A11E

Oil Lubrication System

Manual

Vacuum Table

N/A

Total Power (hp)

9

Machine Dimensions (L x B x H) (mm)

3200 x 3500 x 1800

Approximate Net Weight (kg)

800
