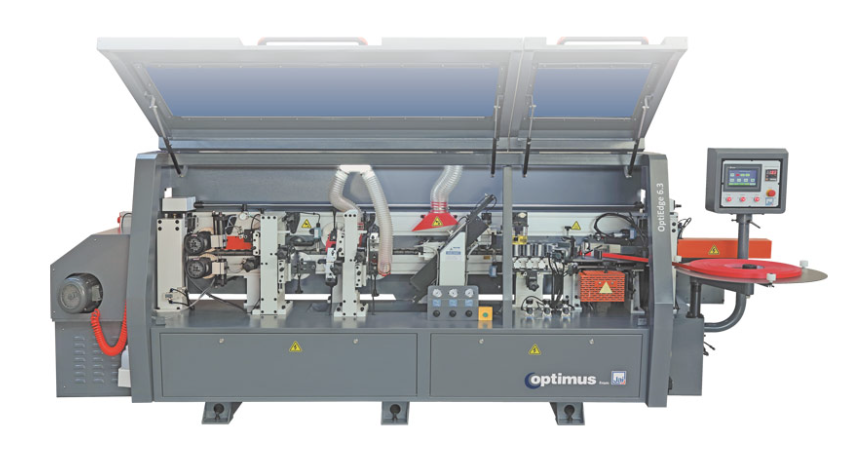

Optimus-OptiEdge 6.3-High Speed Auto Edge Bander-Quick, Simple and Powerful with Maximum Productivity & Superior Finish

Available

Minimum Order Quantity: 1 PCS

Work Piece Thickness Range (mm)

10 - 60

Edge Banding Thickness for PVC & ABS in Coil Form (mm)

0.4 - 3.0

Minimum Work Piece Length (mm)

100

Minimum Work Piece Width (mm)

Work Piece Feeding Speed (m/min)

15 - 20 - 25

End Cutting Motor Power (No. / hp)

2 x 0.5

Fine Trimming Motor Power (No. / hp)

2 x 1

Working Temperature Range (°C)

180 - 200

Buffing Motor Power (No. / hp)

2 x 0.5

Compressed Air Required (kg/cm²)

6 to 8

Glue Pot Capacity (Kg)

2.0

Total Power (hp)

Machine Dimension (L x B x H) (mm)

4350 x 1200 x 1600

Approx. Net Weight (kg)

1200

Wholesaler/Dealer/Distributor

Verified Supplier

High performance machine with High feeding speed up to 25 m/min gives more production.
Easy accessible, user friendly Smart Touch PLC control panel.
Motorized up-down movement of pressure beam for easy thickness setting.
Safety air tank provision for non-dropping of air during process.
High frequency motors sliding on heavy prismatic guide ways for perfect finishing with trouble free performance.
Minimum distance between 2 panels 600 mm, which gives higher productivity.
Automatic lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with 4 heavy duty pressure rollers.
Robust feed chain & conveyor system with heavy duty gearbox for effective pressure on panels.
All electronic & pneumatic parts are from well-known international brands.
Low maintenance m/c, easy available cost effective spares, best after sales service support.
