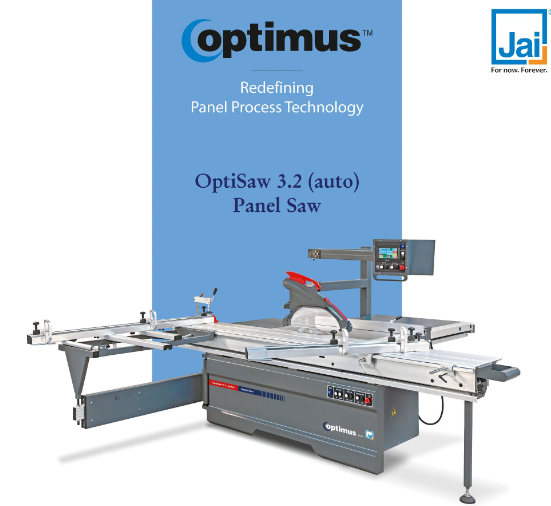

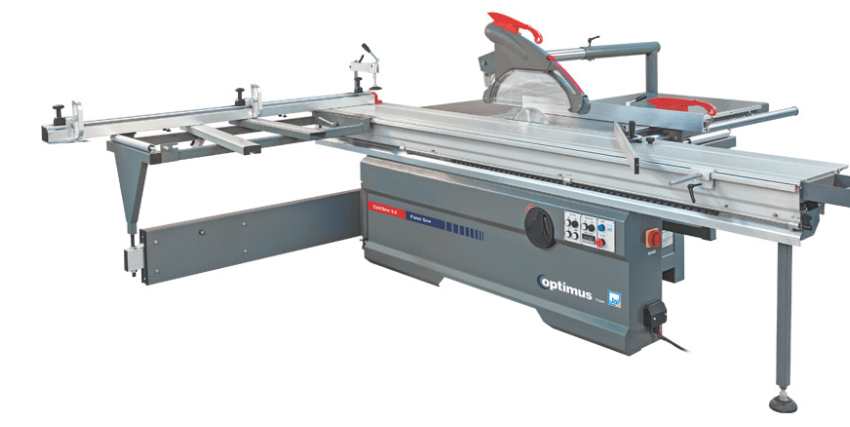

Optimus-OptiSaw 3.2-Panel Saw

Available

Category: Hand Machinery and Tools

Subcategory: Saw Blades & Grinding Wheels

Brand: Jai Industries

Sold by: New Shrestha Machinery Concern

Minimum Order Quantity: 1 PCS

Sliding Table Width (mm)

410

Saw Blade Speed (rpm)

3000 / 4000 / 5000

Sliding Table Length (mm)

3200

Max. Diameter Saw Blade (mm)

355 x 30

Tilting of Saw Blade (degree)

90° - 45° (Manual)

Up-Down Movement of Saw Blade

Auto

Motor for Saw Blade (hp)

7.5

Tilting of Scoring Blade (degree)

90° - 45° (Manual)

Scoring Blade Speed (rpm)

8000

Max. Diameter Scoring Blade (mm)

120 x 20

Lateral Adjustment of Scoring Blade (mm)

± 3

Max. Depth of Cut of Scoring Blade (mm)

Up-Down Movement of Scoring Blade

Manual

Motor for Scoring Unit (hp)

Cutting Width / Rip Capacity (mm)

1250

Total Power (hp)

8.5

Length Cross-Cut Fence (mm)

2000 (Telescopes to 3200 mm)

Dust Extraction Port Diameter (mm)

100

Machine Dimension (L x B x H) (mm)

3400 x 3550 x 1500

Approx. Net Weight (kg)

1000

Seller Information
New Shrestha Machinery Concern

Wholesaler/Dealer/Distributor

Verified Supplier

Sturdily built heavy duty machine that gives precise cut with burr free cutting.

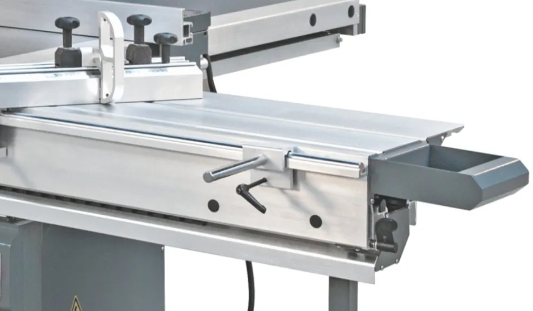

Heavy duty top quality precision sliding table with long lasting accuracy.
Easy accessible, user friendly control panel with electronic digital readout of saw unit tilting.
Motorized up-down movement of saw unit from control panel and tilting movement of saw unit by means of hand wheel.
Vertical movement of the saw unit is linear with maintenance - free guide bearings & allows the whole unit to move easily.
Easier & quick scoring unit up-down movement & lateral adjustment.
Ripfence cutting width up to 1250 mm with fine adjustment.
Central lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
All electronic & pneumatic parts are from well-known international brands.
Low maintenance m/c, easy available cost effective spares, best after sales service support.
