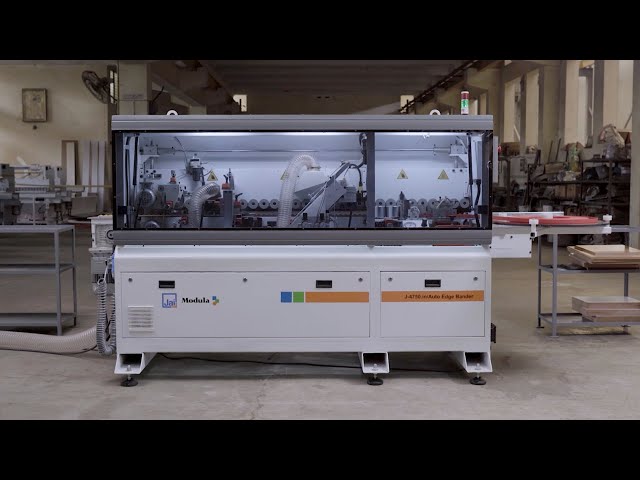

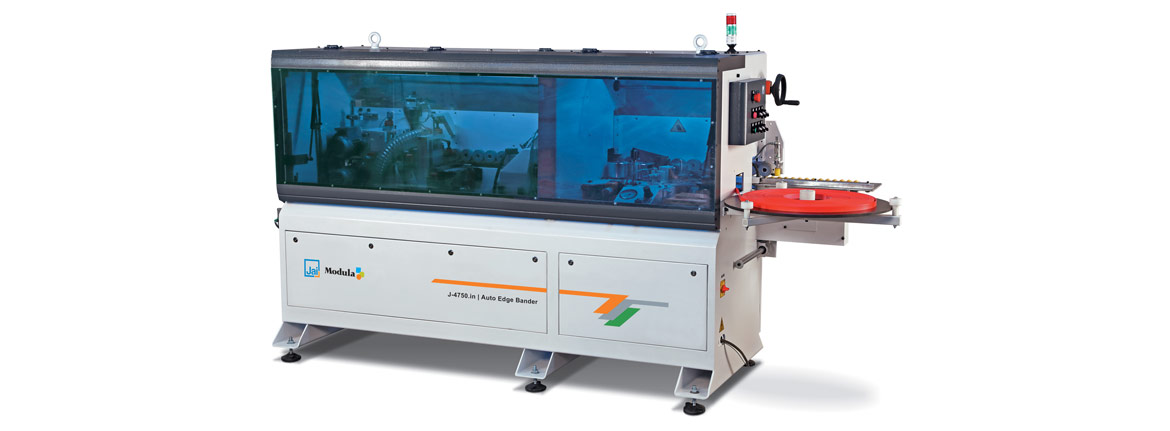

Auto Edge Banders Model No.J-4750.in


Minimum Order Quantity: 1 PCS


Max. Diameter of Cutter

70 mm

Spindle Speed (Trimming Unit)

18000 rpm

Max. Trimming Thickness

3 mm

Work Piece Thickness Range

10 - 55 mm

Total Power (Trimming Unit)

2 x 1.0 hp

Main Table Size (L x B)

1100 x 700 mm

Max. Diameter / Thickness of Buffing Wheel

150 / 25 mm

Spindle Speed (Buffing Unit)

1400 rpm

Radius Trimmer Power

0.4 hp

Diameter of Dust Extraction Port

100 mm

Total Power

3.4 hp

Compressed Air Requirement

0.5 hp / 7.0 kg/cm²

Machine Dimension (L x B x H)

1450 x 730 x 1300 mm

Total Power (Buffing Unit)

2 x 0.5 hp


Wholesaler/Dealer/Distributor

verified image
Verified Supplier

Assured Image

Salient Features :-



-Sturdy built heavy-duty machine to suit Indian working condition for precise application of edge banding material.\

  • -Two edge banding pressure rollers actuated by pneumatic cylinders, gives adequate pressure on edge for effective banding.
  • -High frequency compact motors sliding on prismatic guide ways for perfect finishing with trouble free performance.
  • -Easy accessible, user friendly control panel positioned at machine infeed, for quick operations.
