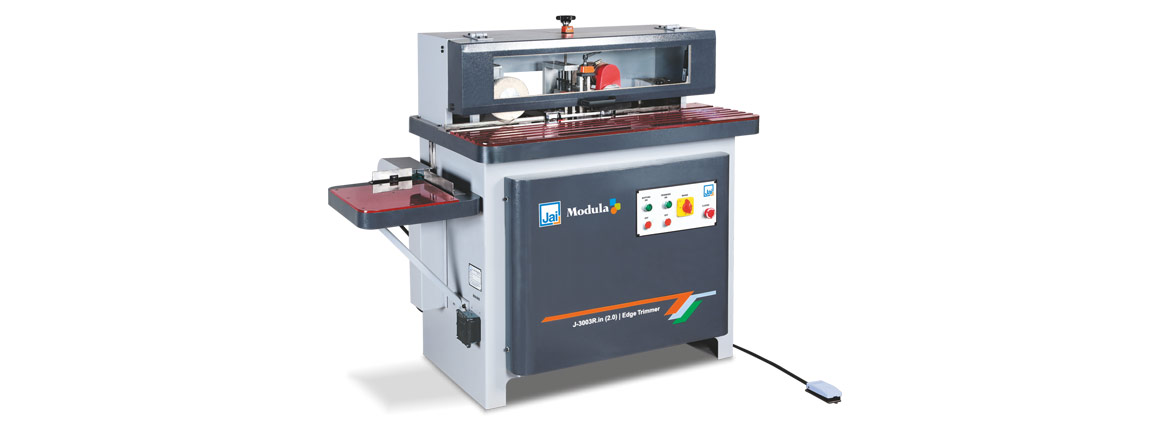

Edge Trimmer Model No.J-3003R.in(2.0)

Attribute

Specification

Main Table Size (L x B)

1100 x 700 mm

Max. Trimming Thickness

3 mm

Work Piece Thickness Range

10 - 55 mm

Max. Diameter of Cutter

70 mm

Spindle Speed (Trimming Unit)

18000 rpm

Total Power (Trimming Unit)

2 x 1.0 hp

Spindle Speed (Buffing Unit)

1400 rpm

Total Power (Buffing Unit)

2 x 0.5 hp

Radius Trimmer Power

0.4 hp

Max. Diameter / Thickness of Buffing Wheel

150 / 25 mm

Diameter of Dust Extraction Port

100 mm

Compressed Air Requirement

0.5 hp / 7.0 kg/cm²

Machine Dimension (L x B x H)

1450 x 730 x 1300 mm

Total Power

3.4 hp
