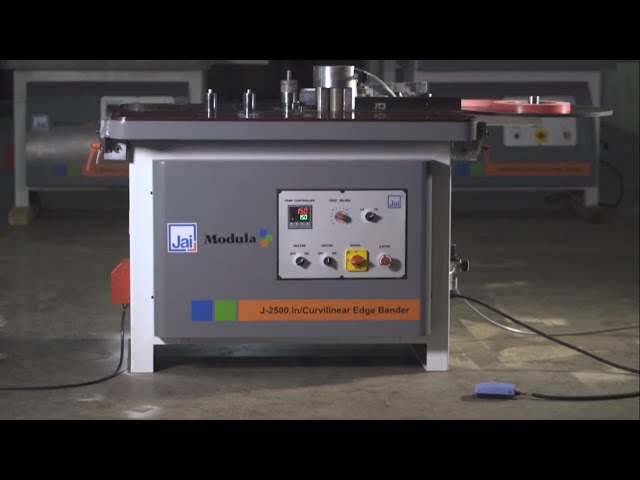

Curvilinear Edge Bander Model No.J-2500.in(semi auto)

Attribute

Specification

Table Size (L x B)

1100 x 800 mm

Edge Banding Thickness for PVC / ABS (Coil Form)

0.4 - 2.0 mm

Min-Radius for Curved Edging

20 mm

Minimum Work Piece Length

280 mm

Work Piece Thickness Range

10 - 50 mm

Glue Pot Capacity

1.5 kg

Front Table Tilt Angle

0° & 45°

Front Table Extension Length

Up to 200 mm

Feed Speed

4 to 12 m/min

Maximum Setting Temperature

180°C

Compressed Air Requirement

0.5 hp / 5-7 kg/cm²

Electric Motor

0.37 kW (415V, 3Ø)

Power Supply

415V, 3Ø

Total Power

2.5 hp

Approximate Net Weight

240 kg

Heating Element

1.5 kW

Machine Dimension (L x B x H)

1750 x 950 x 950 mm
