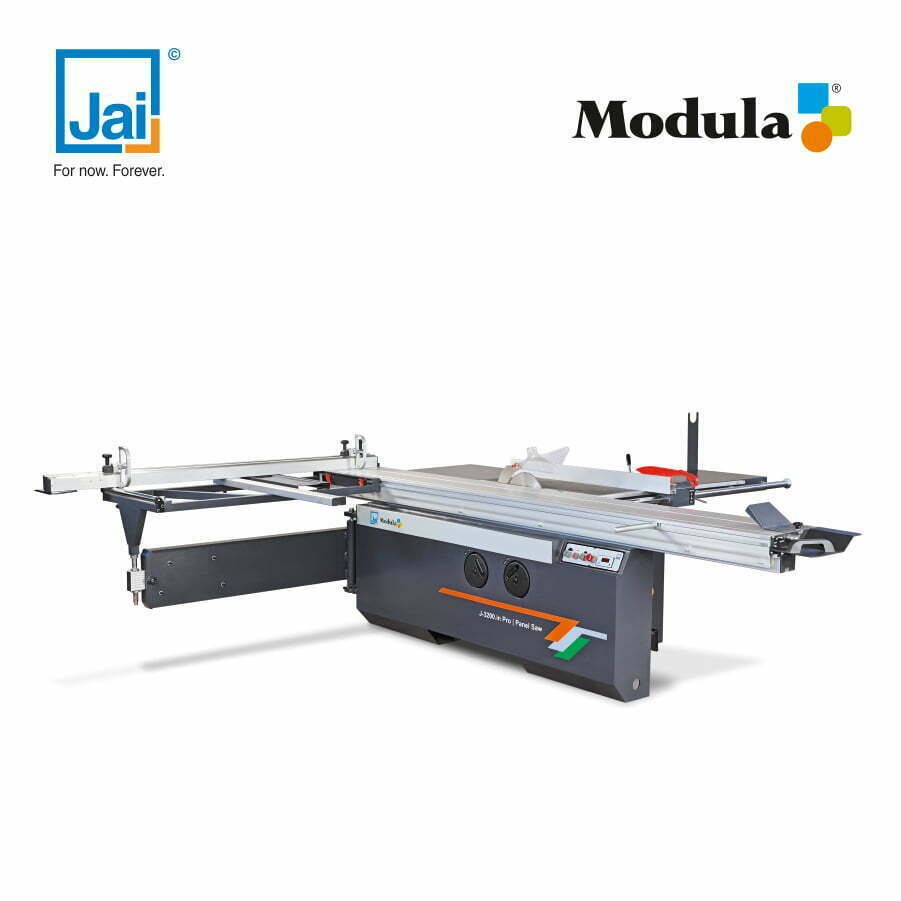

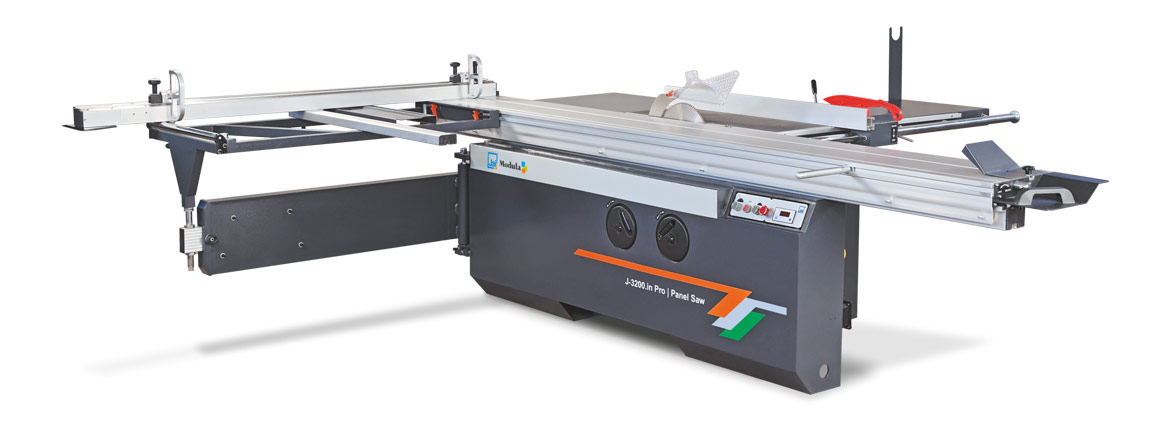

Panel Saw Model No.J-3200.in Pro

Sliding Table Length (mm)

3200

Attribute

Specification

Saw Blade Speed (rpm)

4000 / 5000

Max. Diameter Saw Blade (mm)

355 x 30

Tilting of Saw Blade (degree)

90° - 45° (manual) with electronic digital readout

Max. Cutting Depth at 90° (mm)

102

Max. Cutting Depth at 45° (mm)

72

Sliding Table Width (mm)

360

Up-Down Movement of Saw Blade (mm)

Manual

Motor for Saw Blade (hp)

5

Scoring Blade Speed (rpm)

8500

Tilting of Scoring Blade (degree)

90° - 45° (manual) with electronic digital readout

Up-Down Movement of Scoring Blade (mm)

Manual

Lateral Adjustment Scoring Blade (mm)

±3

Max. Depth of Cut of Scoring Blade (mm)

5

Motor for Scoring Blade (hp)

1

Max. Diameter Scoring Blade (mm)

120 x 20

Dimension Main Saw Table (mm)

560 x 900

Length Cross-Cut Fence (mm)

2000 (telescopes to 3200 mm)

Dust Extraction Port Diameter (mm)

100 & 50

Total Power (hp)

6

Machine Dimension (L x B x H) (mm)

3400 x 3710 x 1300

Approx. Net Weight (kg)

850

Cutting Width / Rip Capacity (mm)

1250
