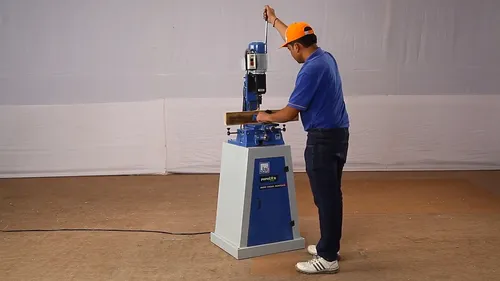

Basic Chisel Mortiser Model No.J-920(E)

Table Size

200 x 165 / 8" x 6½"

Longitudinal Movement of Table

230 / 9"

Max. Chisel Capacity

6 mm to 12 mm

Motor Power (HP / RPM) (Single Phase)

1 / 2800

Max. Depth of Cut

89 / 3½"

Approximate Weight of Machine (kg)

110

Attribute

Measurement (mm / inch)

Cross Movement of Table

75 / 3"

Model

J-920 (E)

Max. Height of Workpiece on Table

100 / 4"
