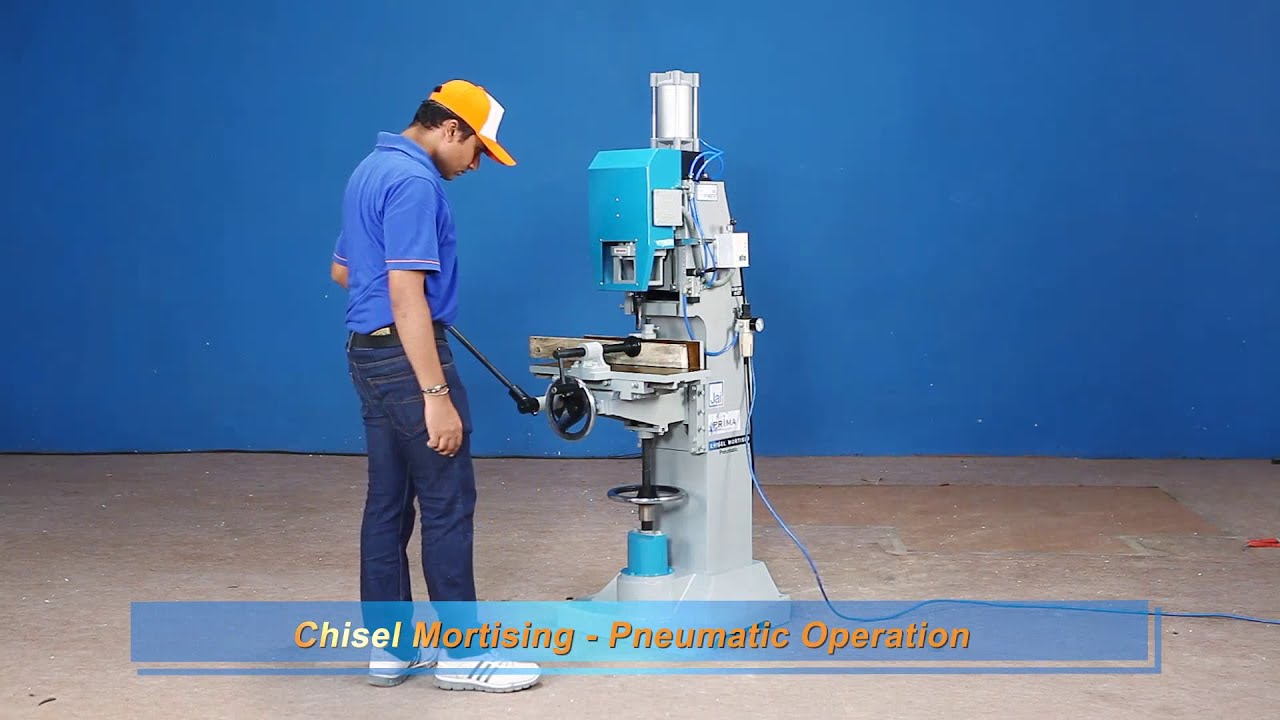

Chisel Mortiser(Pneumatic) Model No.J-1920

Cross Movement of Table

100 / 4"

Air Pressure Required (kg/cm²)

5 to 7

Model

J-1920

Max. Depth of Cut

89 / 3½"

Motor Power (HP / RPM)

2 / 2800

Table Size

530 x 200 / 21" x 8"

Longitudinal Movement of Table

305 / 12"

Approximate Weight of Machine (kg)

235

Max. Chisel Capacity

6mm to 19mm

Max. Height of Workpiece on Table

150 / 6"

Attribute

Measurement (mm / inch)

Up/Down Movement of Table

89 / 3½"
