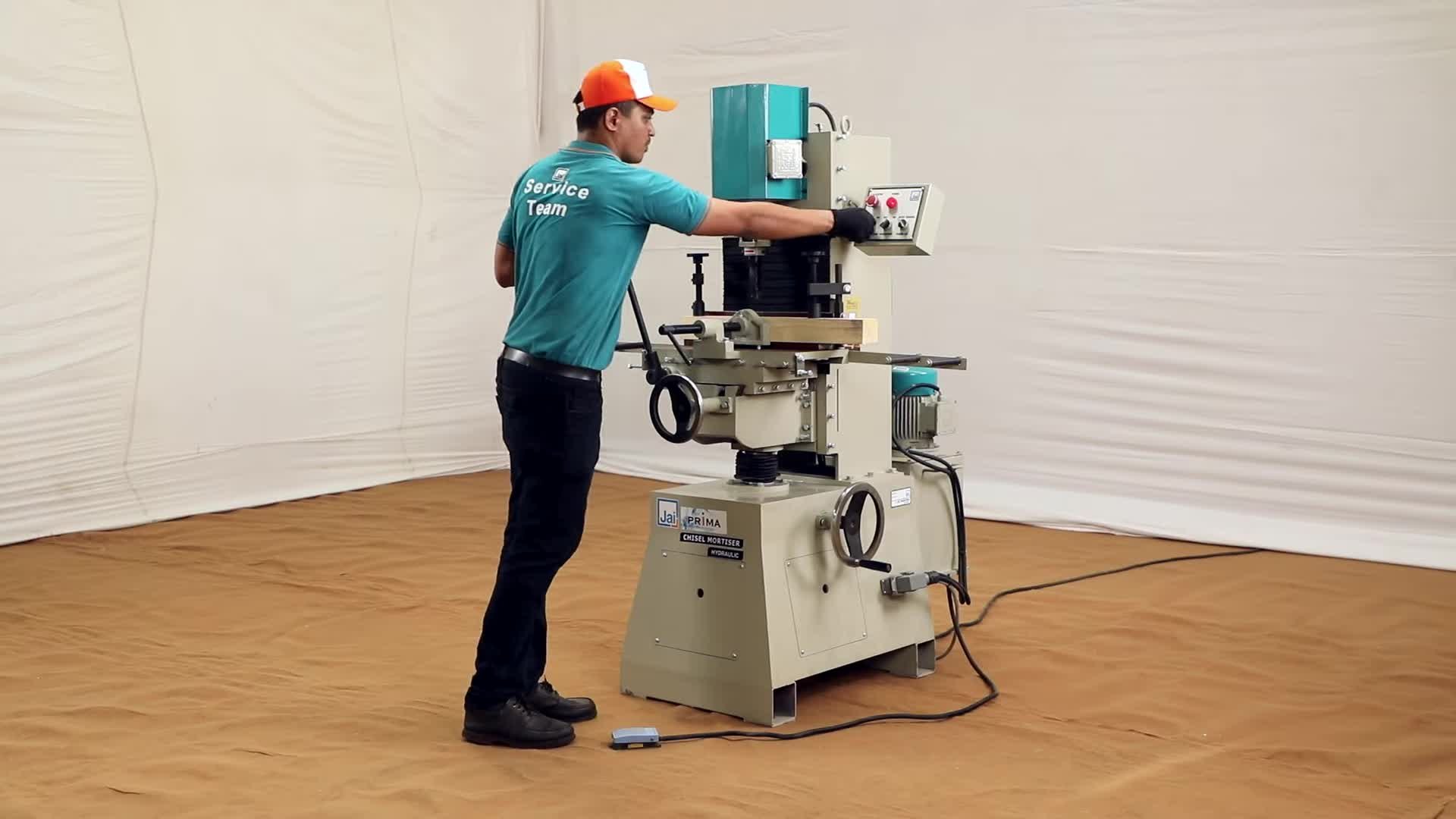

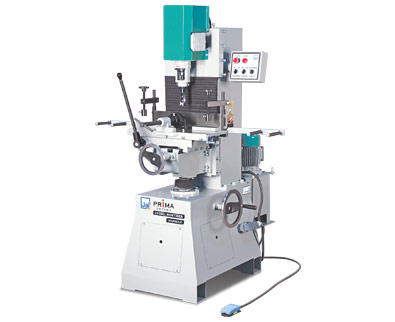

Chisel Mortiser(Hydraulic) Model No.J-1925

Total Power (HP)

4.5

Table Size

555 x 240 / 22" x 9½"

Longitudinal Movement of Table

280 / 11"

Approximate Weight of Machine (kg)

550

Model

J-1925

Up/Down Movement of Table

125 / 5"

Max. Chisel Capacity

8mm to 25.4mm

Max. Height of Workpiece on Table

125 / 5"

Max. Depth of Cut

89 / 3½"

Power Pack Motor (HP / RPM)

1.5 / 1440

Attribute

Measurement (mm / inch)

Cross Movement of Table

89 / 3½"

Motor Power (HP / RPM)

3 / 2800
