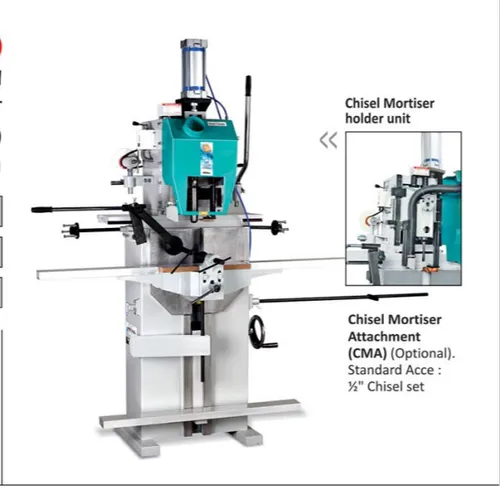

Chain-n-Chisel Mortiser-Pneumatic Model No.J-1930

Table Tilt - Degree

45°

Max. Height of Workpiece on Table

254 / 10"

Longitudinal Movement of Head / Table

305 / 12"

Model

J-1930

Size of Dust Collection Port - Dia.

100 / 4"

Max. Height of Door or Frame

1000 / 39"

Air Pressure Required (kg/cm²)

5 to 7

Table Size

455 x 150 / 18" x 6"

Electric Motor (HP / RPM)

3 / 1440

Approximate Weight of Machine (kg)

475

Min. Depth of Cut - Chain Mortiser

90 / 3½"

Max. Depth of Cut - Chain Mortiser

140 / 5½"
